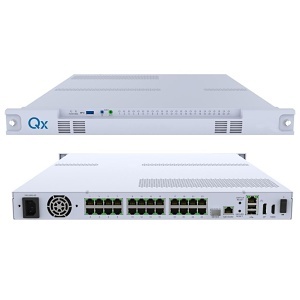

Qumulex QXE520 QxEnergy Rackmount Gateway Appliance for QxControl, 24-Port PoE, 16TB HDD
520
|Q1-QXE52016
Hard Drive Capacity: 16TB
Number of Channels: 24
Shop all Qumulex
Qumulex QXE520 QxEnergy Rackmount Gateway Appliance for QxControl, 24-Port PoE, 16TB HDD
520 | Q1-QXE52016
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
QxEnergy QXE520-16 is a QxControl gateway appliance that delivers the convenience of integrated PoE+ ports to power and connect your cameras and door controllers, in a 1U rackmount format, for installations where 16TB of local video storage is desired. QxControl is a modern take on Video Management and Access Control software. With QxControl, commercial customers can manage their physical security from anywhere, on any device that runs a browser, using a cybersecure, intuitive UI.
Main Features
- Up to 32 cameras and 64 total resources
- Up to 60TB of local storage
- Intel 7th Gen Core i7-7700 Processor (Kaby Lake S)
- Dual Uplink ports
- 24-10/100 Mbps ports with PoE+, 30W per port with a total power budget of 240W, 10/100/1000 ingress between ports & CPU
- 90-264 VAC / 47-63 Hz
- Input Power: Max 200 Watts
- Operating Temp: 0°C-40°C
- 1U form factor, 19" w x 19" d x 1.75" h
- Three year warranty
General Information
Name: Qumulex QXE520 QxEnergy Rackmount Gateway Appliance for QxControl, 24-Port PoE, 16TB HDD
Category: Qumulex, Video Surveillance, Recording Devices & Servers, Video Surveillance Servers
UPC Code: 810132780578
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number Q1-QXE52016 Brand Name Qumulex Manufacturer Qumulex Manufacturer Part Number QXE520-16 Product Line QxEnergy Product Model 520 Product Name QxEnergy 520 Product Series 520 Product Type Video Surveillance Station
Network Interface Ethernet 10Base-T/100Base-TX/1000Base-T Number of Channels 24 Power Consumption 200W Storage Capacity 16TB
TAA Compliant No
HDMI Yes
Ethernet Yes Remote Management Yes
Depth 19" Height 1.8" Weight 30.90 lb Width 19"
Hard Drive Capacity 16TB
Limited Warranty 3-Year
ADI Cloud Storage Eligible Yes Country of Origin US
