Image of TC-B004DPA4K

Eaton Tripp Lite B004-DPUA4-K 4-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub

B004-DPUA4-K|TC-B004DPA4K
Number of Computers Supported: 4

Eaton Tripp Lite B004-DPUA4-K 4-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub

B004-DPUA4-K|TC-B004DPA4K
Number of Computers Supported: 4
Key Features
  • Control 4 computers with one KVM switch

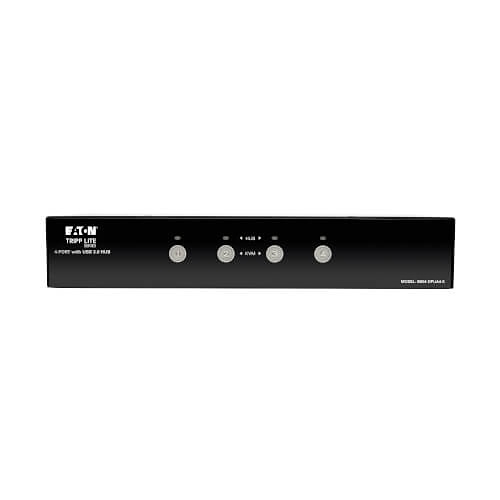

  • Switch via keyboard hotkeys or buttons
  • EDID info sent to selected computer
Key Features
  • Control 4 computers with one KVM switch
  • Switch via keyboard hotkeys or buttons
  • EDID info sent to selected computer

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Control 4 computers with one KVM switch
  • Switch via keyboard hotkeys or buttons
  • EDID info sent to selected computer
Eaton Tripp Lite

Eaton Tripp Lite B004-DPUA4-K 4-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub

B004-DPUA4-K | TC-B004DPA4K

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

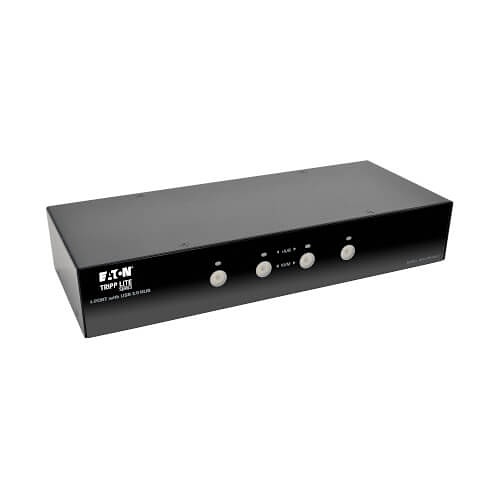

The desktop B004-DPUA4-K 4-Port DisplayPort KVM Switch lets you access, control, boot and reboot four DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse. Switching among DisplayPort computers is quick and simple using keyboard hotkeys or buttons on the unit.

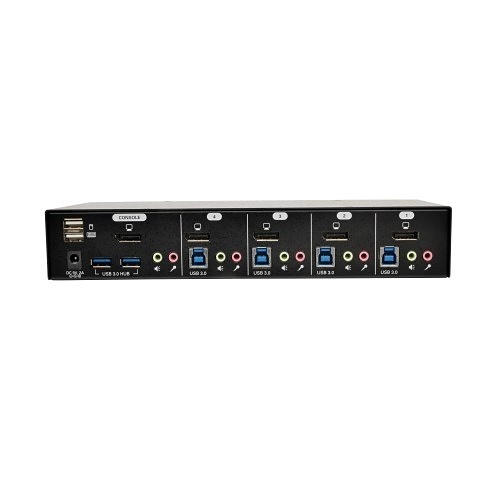

You can also plug microphones and speakers into the 3.5 mm mini-stereo jacks, and the two-port USB 3.0 SuperSpeed hub allows you to connect peripherals, such as a webcam, flash drive, printer or scanner, and share them among computers. Because the audio and USB 3.0 hub ports can be accessed independently, you can, for instance, use a printer connected to the hub to print data from one computer while also listening to music from another computer.

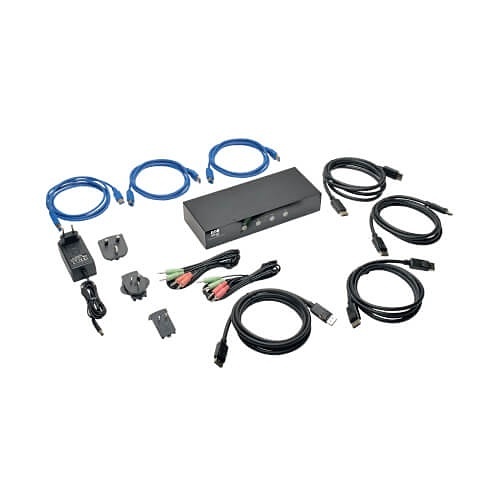

All necessary cables are included. The B004-DPUA4-K supports digital video resolutions up to 2560 x 1600 (including 1080p), 2-channel stereo audio and data transfer rates up to 5 Gbps. The built-in DDC emulator sends the console monitor's EDID information to all connected computers to ensure top video quality and prevent any delay or change in video resolution when switching computers.

The B004-DPUA4-K is easy to set up with no software to install and supports Windows, Mac, Linux and Sun. The USB 3.0 hub is backward-compatible with USB 2.0 and USB 1.1 devices.

Main Features

  • Control 4 computers with one KVM switch
  • Switch via keyboard hotkeys or buttons
  • EDID info sent to selected computer
  • Auto Scan for easy activity monitoring
  • Supports DisplayPort 1.1
  • Independent audio switching with 3.5mm jacks
  • Share audio across computers
  • 2-Port USB 3.0 hub for peripherals
  • USB 3.0 speeds up to 5 Gbps
  • Compatible with Windows, Mac, Linux, Sun

General Information

Name: Eaton Tripp Lite B004-DPUA4-K 4-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub
Category: Data Comm & Networking, KVM Switches & Extenders
UPC Code: 037332188632
Country of Origin: China. Country of origin is subject to change.
