Eaton Tripp Lite B114-002-R 2-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/2xF)
B114-002-R|TC-B114002R
Number of Displays Supported: 2
Eaton Tripp Lite B114-002-R 2-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/2xF)
B114-002-R|TC-B114002R
Number of Displays Supported: 2
Key Features
What's Included
- 2-Port VGA/SVGA video splitter
- Built-in signal booster for long-distance transmission
- Supports high Resolution up to 2048 x 1536 at 60Hz
Key Features
What's Included
- 2-Port VGA/SVGA video splitter
- Built-in signal booster for long-distance transmission
- Supports high Resolution up to 2048 x 1536 at 60Hz
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 2-Port VGA/SVGA video splitter
- Built-in signal booster for long-distance transmission
- Supports high Resolution up to 2048 x 1536 at 60Hz
Eaton Tripp Lite
Eaton Tripp Lite B114-002-R 2-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/2xF)
B114-002-R | TC-B114002R
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

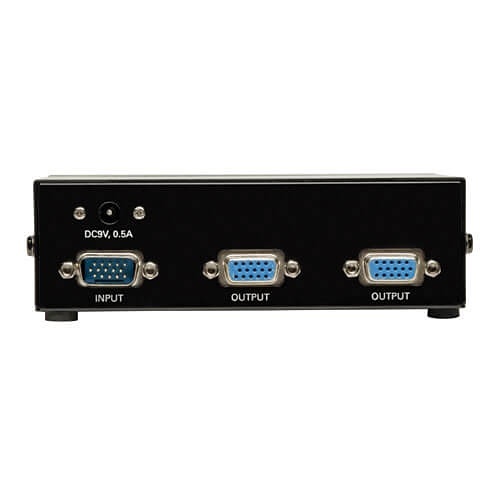

2-Port VGA/SVGA Video Splitter provides bandwidth support at 350 MHz, allowing simultaneous display of video on two monitors. In addition, a built-in booster allows a video signal (up to 2048x1536 at 60 Hz) to be transmitted up to 210' (64m) from the source. Two standard HD15 female ports are used to connect the monitors, while the a third HD15 male port is used to connect the CPU. The splitter can be located up to 25' (7.6m) from the connected computer and up to 185' (56.4m) from the connected monitors. The number of connected monitors can be expanded by cascading up to three levels of B114-002-R splitters together.
Main Features
- 2-Port VGA/SVGA video splitter
- Built-in signal booster for long-distance transmission
- Supports high Resolution up to 2048 x 1536 at 60Hz
- Transmits video up to 210' from source
- 350MHz bandwidth support
- Cascade up to 3 levels for more monitors
- Rugged, fully shielded metal housing
General Information
Name: Eaton Tripp Lite B114-002-R 2-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/2xF)
Category: Pro AV, Commercial Video Signal Distribution, Pro HDMI Splitters
UPC Code: 037332124890
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-B114002R Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number B114-002-R Packaged Quantity 1 Product Model B114-002-R Product Name Two-port VGA/SVGA Video Splitter Product Type Video Switchbox
-
Device Supported Computer Maximum Operating Distance 210' Number of Input Devices Supported 1
-
Maximum Video Resolution 2048 x 1536
-
Number of VGA Outputs 2 VGA In Yes VGA Out Yes
-
Color Black
-
Input Voltage 9V DC
-
Number of Displays Supported 2
-
Graphics Modes QXGA
-
Limited Warranty 3-Year
-
Country of Origin CN Package Contents - B114-002-R VGA/SVGA Video Splitter - 2 Port
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.3A; Output: 9V, 0.8A)
- Owner's manual
