Eaton Tripp Lite U026-20M USB 2.0 Active Extension Repeater Cable, 61' (20m), M/F
U026-20M|TC-U02620M
Cable Length: 61'
Eaton Tripp Lite U026-20M USB 2.0 Active Extension Repeater Cable, 61' (20m), M/F
U026-20M|TC-U02620M
Cable Length: 61'
Key Features
What's Included
- Daisy-chain up to 131' for maximum Extension
- Error-free data transfer at USB 2.0 speeds
- Compatible with USB A Connectors, backward to USB 1.1
Key Features
What's Included
- Daisy-chain up to 131' for maximum Extension
- Error-free data transfer at USB 2.0 speeds
- Compatible with USB A Connectors, backward to USB 1.1
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Daisy-chain up to 131' for maximum Extension
- Error-free data transfer at USB 2.0 speeds
- Compatible with USB A Connectors, backward to USB 1.1
Eaton Tripp Lite
Eaton Tripp Lite U026-20M USB 2.0 Active Extension Repeater Cable, 61' (20m), M/F
U026-20M | TC-U02620M
Please sign in to view pricing and availability and to add to cart.
Accessories
ADI # 0E-75DW2
MODEL # 0E-75DW2
Sign In for Dealer Pricing
ADI # 0E-HOOKLOOP
MODEL # 0E-HOOKLOOP
Sign In for Dealer Pricing
ADI # 0E-RG100100
MODEL # 0E-RG100100
Sign In for Dealer Pricing
ADI # 0E-RG15050
MODEL # 0E-RG15050
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

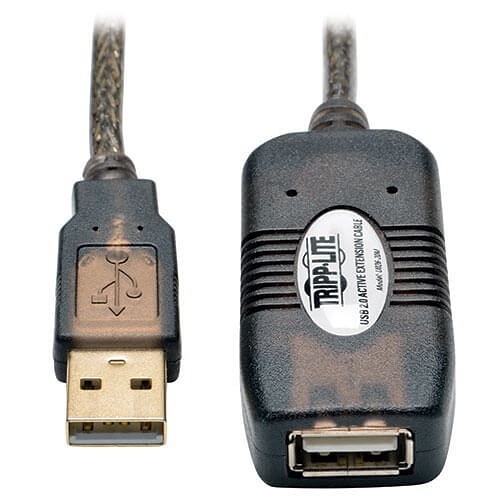

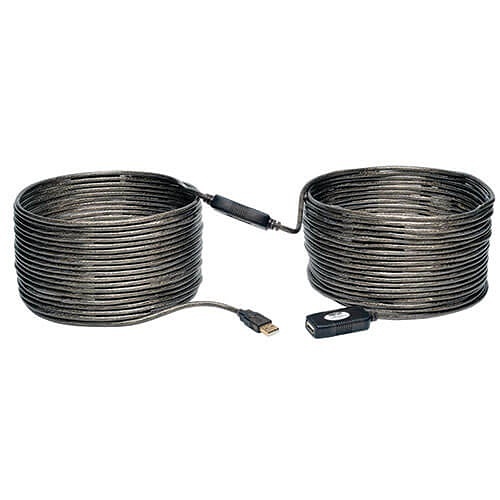

The U026-20M is a 20m (65-foot) USB 2.0 active extension cable used to increase the length of a USB device cable beyond the 16' cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131 feet (40 meters) by daisy-chaining two active cables. Standard six' (1.8m), 10' (3.1m) or 15' (4.6m) USB A/B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required, it will either (i) need to have its own power supply, or (ii) be plugged into a powered USB 2.0 hub (such as U222-004-R).
Main Features
- Daisy-chain up to 131' for maximum Extension
- Error-free data transfer at USB 2.0 speeds
- Compatible with USB A Connectors, backward to USB 1.1
- Provides up to 90mA Power to connected devices
- Premium double-shielded Cable for EMI/RFI protection
- Gold-Plated Connectors for excellent conductivity
- Built-in signal booster for long Extension distances
- RoHS Compliant for environmental safety
- Plug and play, no software required
General Information
Name: Eaton Tripp Lite U026-20M USB 2.0 Active Extension Repeater Cable, 61' (20m), M/F
Category: Pro AV, Commercial Connector Cables, Pro USB Cables
UPC Code: 037332167668
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-U02620M Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number U026-20M Packaged Quantity 1 Product Model U026-20M Product Name USB 2.0 Active Extension Repeater Cable (A-A M/F), 20M (65-ft.) Product Type Data Transfer Cable USB Version 2
-
Cable Type USB Connector on First End USB Type A Male Connector on Second End DB9 Male Connector Plating Gold Device Supported USB Hub
-
Connector Type USB A (MALE)
-
Data Transfer Rate 480 Mbit/s
-
Cable Length 61' Color Black
-
Limited Warranty 3-Year
-
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Active, Strain Relief Package Contents - 20-Meter (65 ft. ) USB2.0 A/A Hi-Speed Active Extension / Repeater Cable
