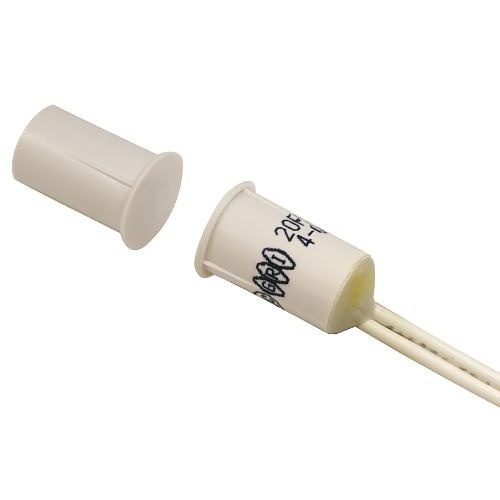

GRI 20RS-12 3/8" Short Press Fit Recessed Switch Set, 5/8" Length, 1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, A, Brown
GRI 20RS-12 3/8" Short Press Fit Recessed Switch Set, 5/8" Length, 1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, A, Brown
- Longer Leads, zip cord or jacketed cable upon request
- Built-in E.O.L. resistors and diodes upon request
- Switches or magnets available separately
- Longer Leads, zip cord or jacketed cable upon request
- Built-in E.O.L. resistors and diodes upon request
- Switches or magnets available separately
Sign In for Dealer Pricing
Become an ADI Customer- Longer Leads, zip cord or jacketed cable upon request
- Built-in E.O.L. resistors and diodes upon request
- Switches or magnets available separately
GRI 20RS-12 3/8" Short Press Fit Recessed Switch Set, 5/8" Length, 1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, A, Brown
20RS-12 | GI-20RS12B
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview
The G.R.I. recessed "shortie" switch set is designed for applications where a 3/8" press to fit set is needed but space limitations will not allow for a full length set to be installed. With the 5/8" 20RS-12, or the .930" 20RS-T, the installer is able to protect openings that otherwise would have to be secured with more visible surface mount configurations. Available in regular and extra wide gaps, the 20RS series provides an easy answer to the difficult, high dollar window problems every installer encounters.
- Lifetime Warranty
- Colors: White, Brown, Gray
- UL and ULC Approved
- Available in Open Loop, Closed Loop and SPDT
- 3/8" Diameter, Press To Fit
- Standard Lead Length 12" or Terminal Block
- Longer Leads, Zip Cord or Jacketed Cable on Request
- Ideal for Thin Framed Doors & Windows
- Built-in Resistors & Diodes Available on Request
- Switches or Magnets Available Separately
- Standard Gap 3/4"+
- Extra Wide Gap 1"+
Main Features
- Longer Leads, zip cord or jacketed cable upon request
- Built-in E.O.L. resistors and diodes upon request
- Switches or magnets available separately
General Information
Specifications
-
ADI Part Number GI-20RS12B Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 20RS-12-B Product Model 20RS-12 Product Name 20RS-12 Magnetic Contact Product Type Magnetic Contact
-
Connectivity Technology Wired Standard Gap 0.5"
-
Color Brown Material Steel
-
Power Source DC
-
Contact Type Closed Loop, N.O. Installation Type Residential Mount Type Recessed Mount
-
Limited Warranty Lifetime
-
Additional Information - 3/8" Recessed switch set
- Press to fit
- 12" #22 AWG leads or screw terminals
- Hermetically sealed
- Plated contacts resist sticking or freezing
- Closed loop
Country of Origin US
