Product Overview

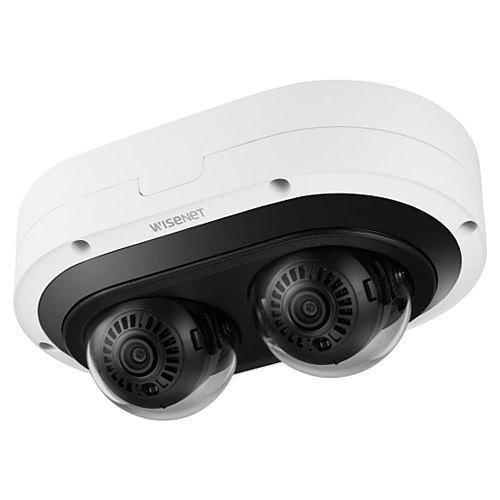

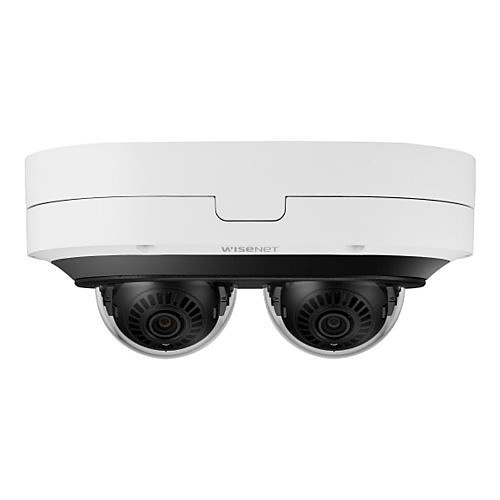

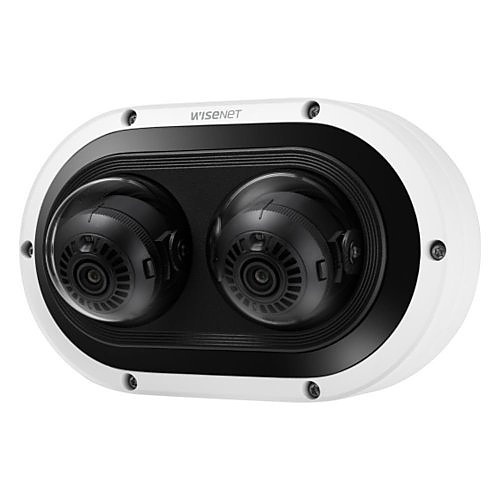

The PNM-12082RVD is an outdoor vandal-rated network camera featuring 2 Channels, with IR in a dome camera form factor. Featuring 6MP X 2 sensors, each at 15fps with a 3.4~6.8mm(2x) (95.08°~47.64°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG). The IR viewable length is 25m (82ft), and features a USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, & Handover. License-free intelligent video analytics include: Virtual line/direction, Enter/Exit, Appear/Disappear, Loitering, intrusion, Defocus detection, Motion detection, Tampering. Audio detection, Sound classification (with optional I/O Box). FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10. Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble
General Information
Name : Hanwha PNM-12082RVD/KEX Series x 6MP Outdoor IR Multi-Directional Dome IP Camera, 3.54-6.69mm Motorized Varifocal Lens, White, TAA Compliant , Hanwha Vision
Category : Dome Cameras
UPC Code :
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-1282RVDKX
Brand Name : Hanwha Vision
Connectivity Technology : Wired
Manufacturer : Hanwha Group
Manufacturer Part Number : PNM-12082RVD/KEX
Product Model : PNM-12082RVD
Product Name : 6MP X 2 IR outdoor Dome
Product Series : P
Product Type : Network Camera
Weight (Approximate) (g) : 1330
Technical Information
Effective Camera Resolution : 6MP
Field of View : H: 96°(Wide)~47°(Tele) V: 51°(Wide)~26°(Tele) D: 113°(Wide)~54°(Tele)
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.67
Maximum Focal Length (mm) : 6.69
Maximum Frame Rate : 15 fps
Minimum Focal Length : 3.54 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 1.9x
Camera
Night Vision Distance : 82 ft
Night Vision Distance (mm) : 24993.6
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 6000000
Maximum Video Resolution : 3328 x 1872
Number of Sensors : 2
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : yes
Lens
Lens Included : Yes
Maximum Focal Length : 6.69 mm
Minimum Aperture : f/2.64
Physical Characteristics
Color : White
Depth : 5.3"
Depth (mm) : 135
Form Factor : Dome
Height : 3.7"
Height (mm) : 93.2
Weight (Approximate) : 2.93 lb
Width : 8.5"
Width (mm) : 215
Product Information
Mount Type : Desk Mount, Rack Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 3.54
Storage
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 15
Warranty
Limited Warranty : 3 year
Miscellaneous
Features : Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion detection, Privacy Masking, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : outdoor
Ingress Protection Rating : IP66, IP67
TAA Compliant : yes
