Hanwha PNM-9085RQZ1/KUS Series x 5MP Multi-Directional PTRZ IP Camera, 4.13-9.4mm Motorized Varifocal Lens, White, TAA Compliant
PNM-9085RQZ1/KUS|SQ-985RQZ1KS
Hanwha PNM-9085RQZ1/KUS Series x 5MP Multi-Directional PTRZ IP Camera, 4.13-9.4mm Motorized Varifocal Lens, White, TAA Compliant
PNM-9085RQZ1/KUS|SQ-985RQZ1KS
Key Features
- 5MP x 4ch multi-directional camera, using one IP address
- Motorized PTRZ for easy installation and remote adjustment of entire FoV
- 30 fpsat5MP(H.265, H.264)
Key Features
- 5MP x 4ch multi-directional camera, using one IP address
- Motorized PTRZ for easy installation and remote adjustment of entire FoV
- 30 fpsat5MP(H.265, H.264)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 5MP x 4ch multi-directional camera, using one IP address
- Motorized PTRZ for easy installation and remote adjustment of entire FoV
- 30 fpsat5MP(H.265, H.264)
Hanwha Vision
Hanwha PNM-9085RQZ1/KUS Series x 5MP Multi-Directional PTRZ IP Camera, 4.13-9.4mm Motorized Varifocal Lens, White, TAA Compliant
PNM-9085RQZ1/KUS | SQ-985RQZ1KS
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
Capture Advance
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WattBox
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WattBox
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

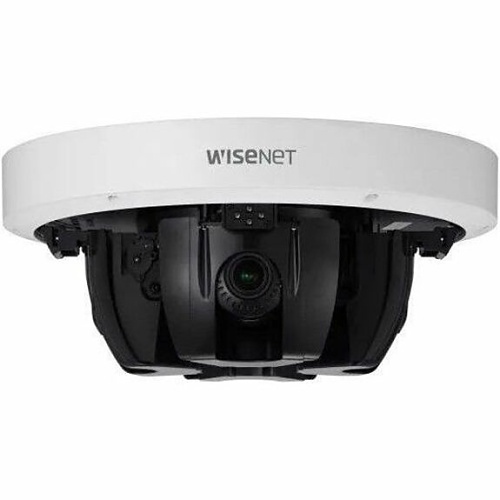

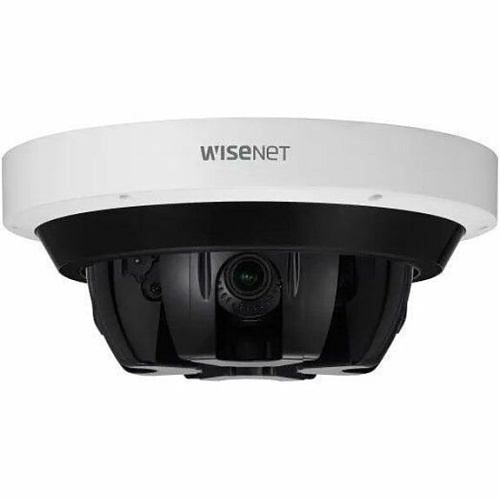

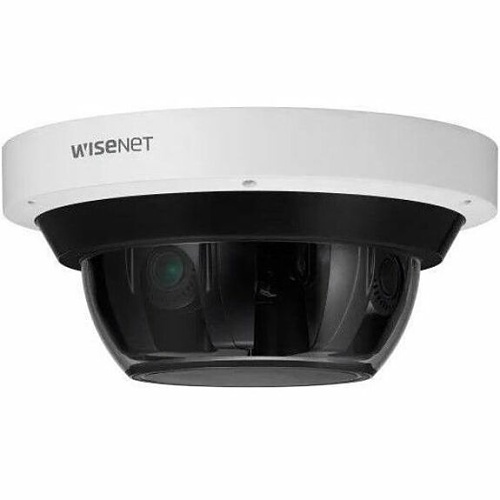

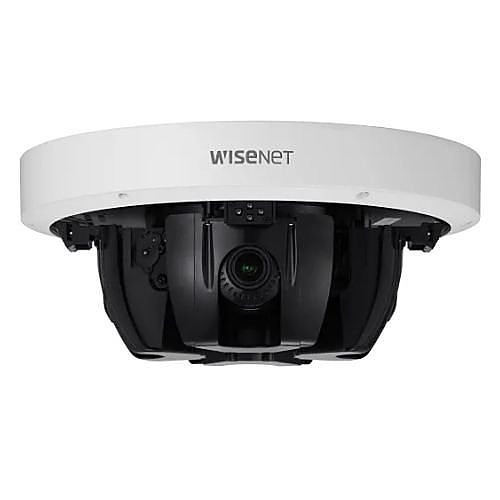

The PNM-9085RQZ1 has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-9084RQZ1 and PNM-9085RQZ1 support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting. The PNM-9084RQZ1/PNM-9085RQZ1 has built-in IR sensors to each of the four lenses. Each lens and its IR sensors move together when users control the lenses, producing clear images from up to 30 meters even in low-light environments.
Main Features
- 5MP x 4ch multi-directional camera, using one IP address
- Motorized PTRZ for easy installation and remote adjustment of entire FoV
- 30 fpsat5MP(H.265, H.264)
- 4.13~9.4mm(2.3x) motorized PTRZ varifocal lens
- Integrated IR that rotates with camera head, viewable length : 30m
- H.265, H.264, MJPEG codec, Multi streaming
- Video analytics, WiseStreamII
- IP66, IK10, NEMA4X
- Easy Gangbox mounting installation
General Information
Name: Hanwha PNM-9085RQZ1/KUS Series x 5MP Multi-Directional PTRZ IP Camera, 4.13-9.4mm Motorized Varifocal Lens, White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code:
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-985RQZ1KS Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number PNM-9085RQZ1/KUS Product Model PNM-9085RQZ1/KUS Product Name 20MP (5MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera Product Series P Product Type Camera Weight 11.5lb
-
Connectivity Technology Wired Effective Camera Resolution 20MP Field of View H: 87.58°-37.34°, V: 64.58°-28.04°, D: 112.46°-46.85° Lens Type Varifocal Maximum Aperture f/1.92 Maximum Frame Rate 30fps Minimum Focal Length 4.13mm Night Vision Yes Night Vision Type Infrared Optical Zoom 2.3x Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 98.43 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 TAA Compliant Yes
-
Maximum Video Resolution 2560 x 1920 Number of Sensors 4
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 90% RH
-
Longest Shutter Speed 2 Second Shortest Shutter Speed 1/12,000 Second
-
Network (RJ-45) Yes
-
Focal Length 4.13-9.4 mm Lens Included Yes Maximum Focal Length 9.4 mm Minimum Aperture f/2.67
-
Remote Management Yes
-
Color White Durability Dustproof, Impact Resistant, Waterproof
-
Input Voltage 12V DC
-
Diameter 12.4" Mount Type Desktop Mount, Rack Mount, Wall Mount
-
Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Country of Origin KR Features ,, , NEMA4X, 30fps at 5MP(H.265, H.264), 4.13-9.4mm(2.3x) motorized PTRZ varifocal lens, 5MP x 4 Channel multi-directional camera, using one IP address, Easy Gangbox mounting installation, H.265, H.264, MJPEG codec, Multi streaming, Integrated IR that rotates with camera head, viewable length - 30m, Motorized PTRZ for easy installation and remote adjustment of entire FoV, Video analytics, WiseStreamII Impact Protection Rating IK10
