Product Overview
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
General Information

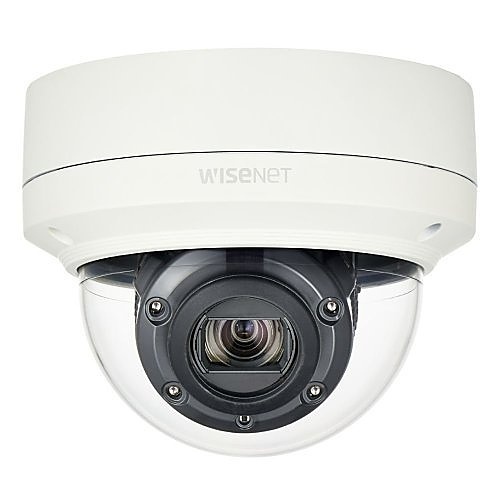

Name : Hanwha XNV-6120R/KME Series 2MP Vandal Resistant IR Dome IP Camera, 12x Optical Zoom Lens, Ivory, TAA Compliant , Hanwha Vision
Category : Dome Cameras
UPC Code : 8801089188335
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-XV612RKME
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : XNV-6120R/KME
Product Model : XNV-6120R
Product Name : 2MP Outdoor Network IR 12X Optical Zoom Dome Camera
Product Series : X
Product Type : Network Camera
Weight (Approximate) (g) : 995
Technical Information
Effective Camera Resolution : 2MP
Field of View : H: 54.58°(Wide)~5.30°(Tele) / V: 32.19°(Wide)~3.00°(Tele) / D: 61.4(Wide)~6.06(Tele)
HD Recording : Yes
Lens Mount Type : Board Mount
Lens Type : Varifocal
Maximum Aperture : f/1.6
Maximum Focal Length (mm) : 62.4
Maximum Frame Rate : 60 fps
Minimum Focal Length : 5.20 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 12x
Camera
Night Vision Distance : 229.66 ft
Night Vision Distance (mm) : 70000
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 1920 x 1080
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : yes
Lens
Lens Included : Yes
Maximum Focal Length : 62.40 mm
Physical Characteristics
Diameter (mm) : 160
Durability : Vandal resistant
Form Factor : Dome
Weight (Approximate) : 2.19 lb
Power Description
Input Voltage : 12V DC, 2.5V DC, 24V AC
Input Voltage (V AC) : 24
Input Voltage (V DC) : 12, 2.5
Product Information
Diameter : 6.3"
Mount Type : Desk Mount, Rack Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 5.2
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 60
Warranty
Limited Warranty : 3 year
Miscellaneous
Features : Audio Detection, Built-in Mechanical ICR, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion detection, Privacy Masking, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Indoor/Outdoor : outdoor
Ingress Protection Rating : IP66, IP67
TAA Compliant : yes
