Product Overview
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
General Information

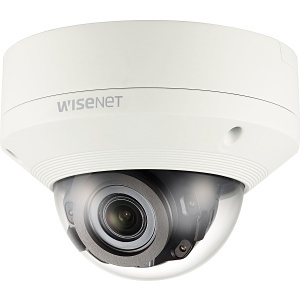

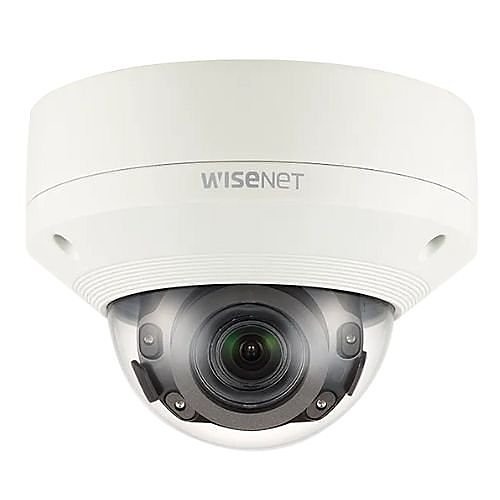

Name : Hanwha XNV-8080R/KME Series 5MP Outdoor IR Vandal Dome IP Camera, 3.9-9.4mm Varifocal Lens, Ivory, TAA Compliant , Hanwha Vision
Category : Dome Cameras
UPC Code : 8801089188250
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-XV88RKME
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : XNV-8080R/KME
Product Model : XNV-8080R
Product Name : 5MP Vandal IR Dome Camera
Product Series : X
Product Type : Network Camera
Weight (Approximate) (g) : 2798.665
Technical Information
Effective Camera Resolution : 5MP
Field of View : H: 92.1°(Wide)~38.7°(Tele) / V: 67.2°(Wide)~29.0°(Tele) / D: 119.9°(Wide)~48.6°(Tele)
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.3
Maximum Focal Length (mm) : 9.4
Maximum Frame Rate : 30 fps
Minimum Focal Length : 3.90 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 2.4x
Camera
Night Vision Distance : 164.04 ft
Night Vision Distance (mm) : 50000
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 5000000
Maximum Video Resolution : 2560 x 1920
Number of Sensors : -1
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : yes
Lens
Lens Included : Yes
Maximum Focal Length : 9.40 mm
Minimum Aperture : f/2.4
Physical Characteristics
Diameter (mm) : 162
Durability : Vandal resistant
Form Factor : Dome
Weight (Approximate) : 6.17 lb
Power Description
Input Voltage : 12V DC, 24V AC
Input Voltage (V AC) : 24
Input Voltage (V DC) : 12
Product Information
Diameter : 6.4"
Mount Type : Desk Mount, Rack Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 3.9
Storage
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 30
Miscellaneous
Features : Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Face Detection, Fog Reduction, Highlight Compensation (HLC), Motion detection, Privacy Masking, Shock Detection, Tamper Detection, Vehicle Detection, Wide Dynamic Range
Impact Protection Rating : IK10+
Indoor/Outdoor : outdoor
Ingress Protection Rating : IP66, IP6K9K
TAA Compliant : yes
