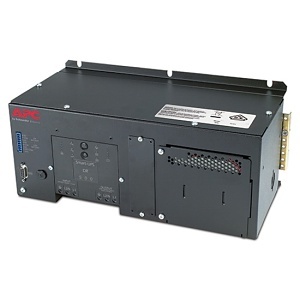

APC SUA500PDRI-S DIN Rail Panel Mount UPS with Standard Battery Backup
SUA500PDRI-S
|2G-A500PDRIS
Shop All APC by Schneider Electric
APC SUA500PDRI-S DIN Rail Panel Mount UPS with Standard Battery Backup
SUA500PDRI-S | 2G-A500PDRIS
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Proven Industrial UPS power protection for control applications and harsh environments.
Main Features
- Experience higher efficiency with lower energy cost
- Keep your sensitive devices powered with a backup of up to 8 minute at full load
- Prevent critical data loss by staying powered during a blackout with up to 325 W load capacity
- 500 VA load capacity - work without any interruption during power outages
- 1 batteries for better reliance and maximum dependability
- 2.50 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- Lead Acid battery chemistry for your convenience and better usability
- 240 V AC output voltage for maximum dependability and added productivity
- DIN Rail form factor helps mounting line-interactive ups significantly faster and easier with added dependability
General Information
Name: APC SUA500PDRI-S DIN Rail Panel Mount UPS with Standard Battery Backup
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-A500PDRIS Brand Name APC by Schneider Electric Manufacturer Part Number SUA500PDRI-S Product Name DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V Product Type Line-interactive UPS Sector Intrusion
Backup/Run Time (Full Load) 8.0min Backup/Run Time (Half Load) 24min Number of Batteries 1 Output Voltage 240V AC
Battery Characteristics Maintenance-free, Spill-proof Battery Chemistry Lead Acid Battery Recharge Time 2hr
Status Indicators Yes
Maximum Operating Temperature 104°F Thermal Dissipation 26.38W
Serial Port Yes
Alarm Low Battery, On Battery, Overload
Depth 6.7" Form Factor DIN Rail Height 5.8" Weight 28.35lb Width 14.3"
Input Frequency 50Hz Input Voltage 220V, 230V, 240V
Limited Warranty 2-Year
Environmental Certification Green Premium, REACH, RoHS, VDE, WEEE Environmentally Friendly Yes
