Product Overview

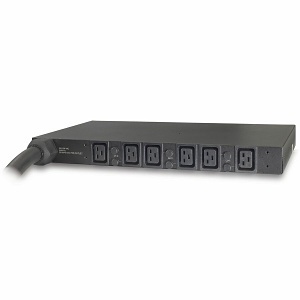

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.
Main Features
- Resettable circuit breakers-Enables a quick recovery from overload events
General Information
Name: APC AP7516 Rack PDU Basic 14.4KW 208V, 1U, C19
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-AP7516 Brand Name APC by Schneider Electric Manufacturer Part Number AP7516 Packaged Quantity 1 Product Line Basic Rack Product Name Basic Rack 14.4kW 40A PDU Product Series Basic Product Type PDU
Output Voltage 200V, 208V PDU Type Basic Phase Three Phase Receptacle Detail 6 x IEC 60320 C19 Receptacle Type IEC 60320 C19
Color Black Depth 10.0" Height 1.7" Mounting Orientation Horizontal Rack Height 1U Weight 17.59lb Width 17.2"
Input Current 50A Input Voltage 208V Plug/Connector Type Hubbell CS8365C
Mount Type Rack Mount Protection Type Overload Protection
Limited Warranty 2-Year
Environmental Certification cUL Listed, METI Denan, UL Listed Environmentally Friendly Yes Package Contents - Basic Rack 14.4kW 40A PDU
- Installation guide
- Rack mounting brackets
