Belden 5302FE 008U500 18-4 Security and Sound Cable, BC, Shielded, CMR, PVC, Gray
5302FE 008U500
|7B-532FE8U5
Shop All Belden
Belden 5302FE 008U500 18-4 Security and Sound Cable, BC, Shielded, CMR, PVC, Gray
5302FE 008U500 | 7B-532FE8U5
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

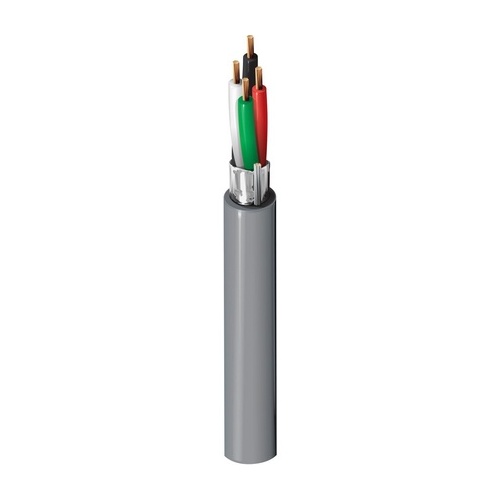

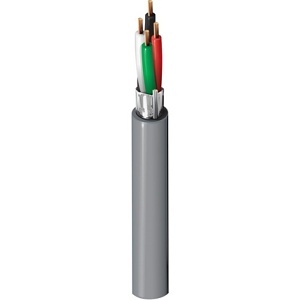

Security and Sound Cable, Riser-CMR, 4-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil shield and PVC jacket with ripcord.
Main Features
- Includes 4-18 AWG stranded bare copper conductors with polypropylene insulation
- Beldfoil shield for electromagnetic interference protection
- PVC jacket with ripcord for easy installation
- CMR rated for riser applications
- Gray color for identification
General Information
Name: Belden 5302FE 008U500 18-4 Security and Sound Cable, BC, Shielded, CMR, PVC, Gray
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825159544
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-532FE8U5 Application/Usage Audio/Speaker, Intercom/PA, Noisy Environment, Power-Limited Controls, Security System Brand Name Belden Country of Origin MX Manufacturer Part Number 5302FE 008U500 Packaged Quantity 152
American Wire Gauge 18AWG Cable Rating Riser Conductor Count 4 Conductor Material Bare Copper Number of Conductors 4 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 500' Color Gray Insulation Material PE, PO, PP Jacket Material PVC
Length 500.0'
Indoor/Outdoor Indoor
