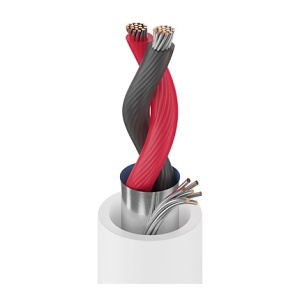

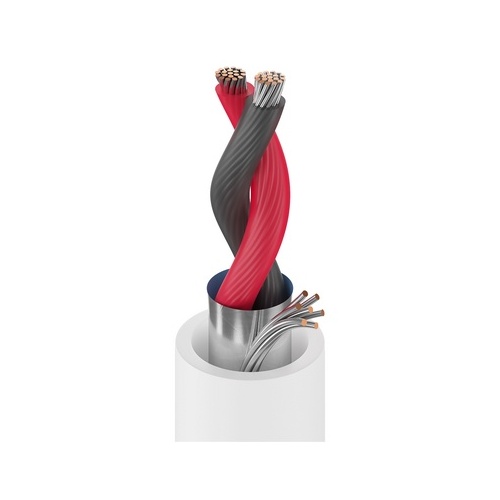

Belden 82760 877U500 18/2 Stranded Low Capacitance Computer Cable, TC conductors, FEP insulation, twisted pair, overall Beldfoil shield, 500' (152.4m) UnReel
82760 877U500
|7B-82760877U
Shop All Belden
Belden 82760 877U500 18/2 Stranded Low Capacitance Computer Cable, TC conductors, FEP insulation, twisted pair, overall Beldfoil shield, 500' (152.4m) UnReel
82760 877U500 | 7B-82760877U
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
RS-485, 2 Pair 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid(90%) Shield, PVC Outer Jacket, CMP.
Main Features
- Offers convenient control over compatible equipments
- Features Bare Wire cable type for your convenience and desired usability
- Stranded feature for better usability and increased efficiency
- Fully compatible with audio devices
General Information
Name: Belden 82760 877U500 18/2 Stranded Low Capacitance Computer Cable, TC conductors, FEP insulation, twisted pair, overall Beldfoil shield, 500' (152.4m) UnReel
Category: Belden, Wire & Cable, Security & Access Control Cables, Multipair Cables
UPC Code: 612825197737
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-82760877U Application/Usage ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring, 0-10v, indoor plenum applications; low voltage analog signals (4-20ma Brand Name Belden Country of Origin US Manufacturer Belden CDT, Inc Manufacturer Part Number 82760 877U500 Packaged Quantity 152 Product Name Bare Wire Control Cable Product Type Control Cable
American Wire Gauge 18AWG Cable Rating Plenum Cable Type Category 6 Conductor Count 2 Conductor Material Tinned Copper Device Supported Audio Device Jacket Type FT6, Plenum Duplex Zip Number of Conductors 1 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 500' Color Clear Insulation Material FEP Jacket Material PVC Material LS PVC
Length 500.0'
Limited Warranty 10-Year
Environmental Certification China RoHS 2, EU RoHS, EU WEEE, RoHS, RoHS 2 Environmentally Friendly Yes Features Bendable, Bi-laminate Shielding, Stranded Indoor/Outdoor Indoor
