Belden 88112008500 24AWG 12-Pair Multi-Conductor Shielded Cable, 300V, 500'
88112008500
|7B-8811285
Shop All Belden
Belden 88112008500 24AWG 12-Pair Multi-Conductor Shielded Cable, 300V, 500'
88112008500 | 7B-8811285
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

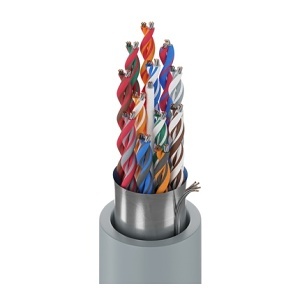

Computer EIA RS-232/422 Cable, 12.5-Pair, 24 AWG stranded (7x32) tinned copper conductors, foam FEP insulation, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, fluorocopolymer jacket, plenum rated.
General Information
Name: Belden 88112008500 24AWG 12-Pair Multi-Conductor Shielded Cable, 300V, 500'
Category: Belden, Wire & Cable, Security & Access Control Cables, Multipair Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-8811285 Brand Name Belden Manufacturer Part Number 88112008500
American Wire Gauge 24AWG Conductor Count 25 Conductor Material Tinned Copper Shielding Yes
Operating Temperature (T-T) -20-150°C
Color Gray Insulation Material FEP Jacket Material PVDF
Indoor/Outdoor Indoor
