Cleerline CTG-MTLC2X12-MM-A HD MTP Elite 24-Fiber Cassette, MM(OM4), 2x12F MTP Male to 24 Quad LC/UPC, Type A
CTG-MTLC2X12-MM-A
|CC-CTGMTLC2X12MMA
Shop All Cleerline
Cleerline CTG-MTLC2X12-MM-A HD MTP Elite 24-Fiber Cassette, MM(OM4), 2x12F MTP Male to 24 Quad LC/UPC, Type A
CTG-MTLC2X12-MM-A | CC-CTGMTLC2X12MMA
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

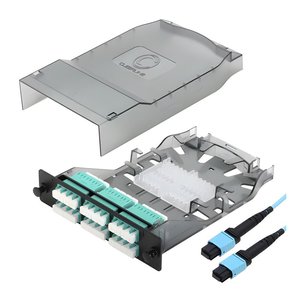

Cleerline™ CTG-MTLC2X12-MM-A is a 24-fiber, Multimode OM4 HD MTP® Elite cassette with LC UPC front ports, 2x12F MTP Male UPC rear connector, and Type A polarity. Cleerline™ HD MTP® Elite Cassettes provide a fast, modular solution for managing high-density links. Each cassette integrates an internal MTP Elite low loss to LC or SC breakout, eliminating pigtails and separate splice trays. A rear MTP male (pinned) connector with adapter accepts female (unpinned) trunks or jumpers. Inside, guided fanout routing and strain-relief features maintain bend radius and organization. These cassettes are sized to fit any LGX-compatible opening. A removable transparent cover supports easy visual verification, and all units include port ID labeling, and dust caps.
Main Features
- Space-saving design (LGX compatible)
- Transparent cover for easy port & polarity verification
- Preloaded MTP Elite-to-LC or SC breakout
- Rear MTP male w/adapter (accepts female, no pins)
- No field splicing or trays required
- Guided fanout & strain relief
General Information
Name: Cleerline CTG-MTLC2X12-MM-A HD MTP Elite 24-Fiber Cassette, MM(OM4), 2x12F MTP Male to 24 Quad LC/UPC, Type A
Category: Data Comm & Networking, Patch Panels, Fiber Optic Cassettes
UPC Code: 669185842661
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number CC-CTGMTLC2X12MMA Brand Name Cleerline Manufacturer Part Number CTG-MTLC2X12-MM-A Product Line MTP Elite Cassettes
Connector on First End MTP/UPC Connector on Second End LC/UCP Fiber Count 12 Fiber Optic Mode Multimode
Limited Warranty 5-Year
