Leviton 16D24-4UY 16 Series Taper Nose Cam-Type Male Plug, Double Set Screw Termination
16D24-4UY
|LV-16D244UY
Shop All Leviton
Leviton 16D24-4UY 16 Series Taper Nose Cam-Type Male Plug, Double Set Screw Termination
16D24-4UY | LV-16D244UY
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

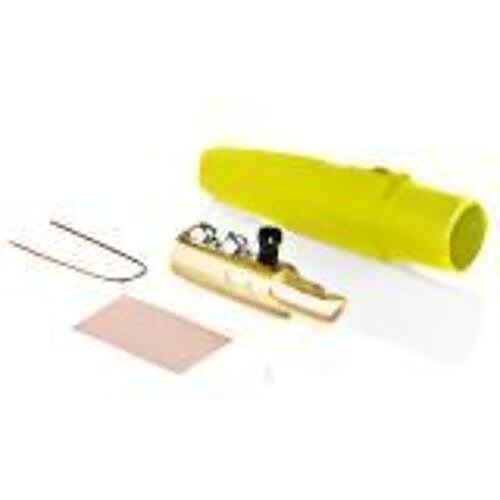

16 Series Taper Nose Cam-Type Male Plug, Contact and Insulator, Detachable, Double Set Screw Termination, Pre-cut for 4/0 AWG cable, 400 Amp Max, Type 3R When Mated, Yellow- BulkPack (25) Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications.These sleeves are precut to fit 4/0 cable. This eliminates the time lost cutting cam sleeves to size and also ends possible waste of product that can occur from errors in manual cutting. NEMA 3R rated for outdoor use when mated UL; 1691, 508 – 35k A / 600V Short Circuit Current Rating Color-coding provides fast and easy phase identification Common applications; entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications.
Main Features
- 16 Series Taper Nose Cam-Type Male Plug
- Detachable with Double Set Screw Termination
- Pre-cut for 4/0 AWG Cable
- 400 Amp Maximum Capacity
- Type 3R Rated for Outdoor Use When Mated
- Yellow Color for Easy Identification
- UL 1691, 508 Certified
- 35k A / 600V Short Circuit Current Rating
- Ideal for Temporary Power Applications
- Suitable for Entertainment, Oil & Gas, Mining
General Information
Name: Leviton 16D24-4UY 16 Series Taper Nose Cam-Type Male Plug, Double Set Screw Termination
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-16D244UY Brand Name Leviton Connector Gender Male Manufacturer Part Number 16D24-4UY Product Name Male Plug, Pre-cut for 4/0 AWG cable, Double Set Screw Termination Product Type Male Plug
American Wire Gauge 10AWG, 4AWG Termination Style Screw Terminals
RoHS Compliant Compliant
Color Yellow
Voltage Rating 600V
