Product Overview

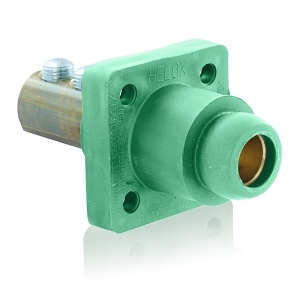

18 Series Cam-Type Female Panel Mount Receptacle, 90-Degree, Double Set Screw Termination, 2/0 - 4/0 AWG, 400 Amp Max, Green Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- 18 Series Cam-Type Female Panel Mount Receptacle
- 90-Degree Double Set Screw Termination
- Supports 2/0 - 4/0 AWG, 400 Amp Max
- Green Color for Easy Phase Identification
- Rhino-Hide for Indoor/Outdoor Use
- NEMA 3R Rated for Outdoor Use
- UL 1691, 508 Certified
- 35k A / 600V Short Circuit Rating
- Ideal for Entertainment, Oil and Gas, Mining
- Suitable for Temporary Power Applications
General Information
Name: Leviton 18R24-UG Green 18SER Female Panel REC Double Sets
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 78477721247
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-18R24UG Brand Name Leviton Country of Origin MX Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 18R24UG Product Line Rhino-Hide Product Name Female Receptacle, 90-Degree, 2/0 - 4/0 AWG, Double Set Screw Termination Product Series 18 Product Type Power Socket
Certifications & Standards UL/CSA RoHS Compliant Compliant
Color Green
Current Rating 400A Voltage Rating 600V
