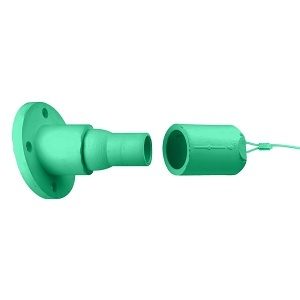

Leviton 22R26-G Rhino-Hide 22 Series Female Receptacle, 15-Degree, 250-777 MCM, 1" Threaded Stud, Green
22R26-G
|LV-22R26G
Shop All Leviton
Leviton 22R26-G Rhino-Hide 22 Series Female Receptacle, 15-Degree, 250-777 MCM, 1" Threaded Stud, Green
22R26-G | LV-22R26G
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
22 Series Ball Nose In-Line Threaded Female Panel Receptacle, 15-Degree, Cam-Type, Cable Range 250-750MCM, 690Amp – GREEN, includes protective cap The 22 Series Cam-Type positive latching connectors and receptacles are the standard used by Navy bases and shipyards in supplying 3-phase power to ships at dockside. Our latching connector series has been tested to meet Navy specs, including intermateability with competition. They provide heavy duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency. Contacts can be retrofitted to existing locations and power distribution systems. Male contacts provide 40% more surface contact with the female vs. competitive products, ensuring greater conductivity while preventing burnout.
Main Features
- 22 Series Ball Nose In-Line Threaded Female Panel Receptacle
- 15-Degree Cam-Type, Cable Range 250-750MCM, 690Amp
- Includes protective cap for added safety
- Standard for Navy bases and shipyards
- Tested to meet Navy specs for intermateability
- Heavy duty, completely insulated connectors
- Vibration resistant, ensuring high conductivity
- Retrofit contacts to existing power systems
- Male contacts offer 40% more surface contact
General Information
Name: Leviton 22R26-G Rhino-Hide 22 Series Female Receptacle, 15-Degree, 250-777 MCM, 1" Threaded Stud, Green
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code: 78477707708
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-22R26G Brand Name Leviton Country of Origin MX Manufacturer Part Number 22R26-G Product Line Rhino-Hide Product Name 22 Series Ball Nose In-Line Threaded Female Panel Receptacle Product Series 22 Product Type Receptacle
RoHS Compliant Not Compliant
Color Green
Voltage Rating 600V
