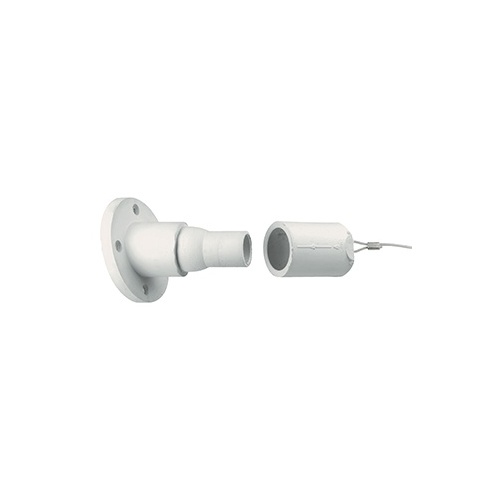

Leviton 22R26-W 22 Series Ball Nose In-Line Threaded Female Panel Receptacle, 15°, White

22R26-W

|

LV-22R26W

Sign In for Dealer Pricing

New to ADI?Become a Customer
Shop All Leviton

Leviton 22R26-W 22 Series Ball Nose In-Line Threaded Female Panel Receptacle, 15°, White

22R26-W | LV-22R26W

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

22 Series Ball Nose In-Line Threaded Female Panel Receptacle, 15-Degree, Cam-Type, Cable Range 250-750MCM, 690Amp – WHITE, includes protective cap The 22 Series Cam-Type positive latching connectors and receptacles are the standard used by Navy bases and shipyards in supplying 3-phase power to ships at dockside. Our latching connector series has been tested to meet Navy specs, including intermateability with competition. They provide heavy duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency. Contacts can be retrofitted to existing locations and power distribution systems. Male contacts provide 40% more surface contact with the female vs. competitive products, ensuring greater conductivity while preventing burnout.

Main Features

  • 15° angled design for optimal cable alignment
  • Cam-Type connectors for secure latching
  • Supports cable range of 250-750MCM
  • 690 Amp capacity for high power applications
  • Includes protective cap for safety
  • Tested to meet Navy specifications
  • Vibration-resistant for reliable performance
  • Retrofit compatible with existing systems
  • 40% more surface contact for enhanced conductivity

General Information

Name: Leviton 22R26-W 22 Series Ball Nose In-Line Threaded Female Panel Receptacle, 15°, White
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
