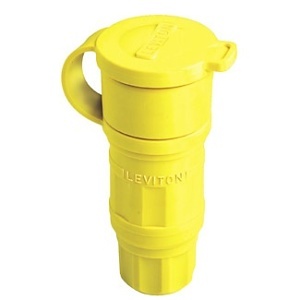

Leviton 29W83 Weatherproof Connector Lock 4-Pole 5-Wire 3-Phase L23-30R 30A 347/600V, Yellow
29W83
|LV-29W83
Shop All Leviton
Leviton 29W83 Weatherproof Connector Lock 4-Pole 5-Wire 3-Phase L23-30R 30A 347/600V, Yellow
29W83 | LV-29W83
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
30 Amp, 347/600 Volt 3PY, NEMA L23-30R, 4P, 5W, Locking Connector, Industrial Grade, Grounding, Wetguard - YELLOW BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance THE BRAND YOU TRUST- Backed by a lifetime warranty.
Main Features
- 30 Amp, 347/600 Volt 3PY
- NEMA L23-30R, 4P, 5W Locking Connector
- Industrial Grade, Grounding
- Wetguard - Yellow, Water Resistant
- IP69K Rated for High-Pressure Washdowns
- Exclusive Tongue and Groove Design
- Heavy-Duty, One-Piece Contacts
- Lifetime Warranty
- Maximum Conductivity Electrical Performance
- Backed by a Lifetime Warranty
General Information
Name: Leviton 29W83 Weatherproof Connector Lock 4-Pole 5-Wire 3-Phase L23-30R 30A 347/600V, Yellow
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code: 78477968840
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-29W83 Brand Name Leviton Country of Origin MX Manufacturer Part Number 29W83 Product Name Wetguard Watertight Locking Connector Product Type Locking Connector
American Wire Gauge 12AWG, 8AWG Contact Plating Nickel
Certifications & Standards CSA, UL RoHS Compliant Compliant
Operating Temperature (T-T) -40°C to 60°C
Color Yellow Material Rubber, Brass
Current Rating 30A Voltage Rating 347/600V AC
Limited Warranty Limited Lifetime
