Leviton 320MI6WLEV LEV Series Pin and Sleeve Mechanical Interlock, 2-Pole, 3-Wire, 20A 240V, Blue
320MI6WLEV
|LV-320MI6WLV
Shop All Leviton
Leviton 320MI6WLEV LEV Series Pin and Sleeve Mechanical Interlock, 2-Pole, 3-Wire, 20A 240V, Blue
320MI6WLEV | LV-320MI6WLV
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
20 Amp, 240 Volt, 2P, 3W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Mechanical Interlock, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused - Blue LEV Series IEC Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity; Bottom hinged cover design makes installation and maintenance quicker and easier Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion NSF certified sanitary design trusted for use in food and beverage facilities.
Main Features
- 20A, 240V, 2-Pole, 3-Wire design
- Industrial Grade, North American-Rated
- IP66/IP67/IP68/IP69/IP69K Watertight
- NSF certified for food and beverage use

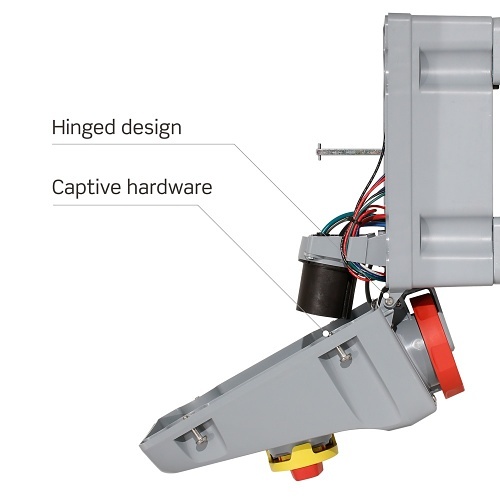

- Bottom hinged cover for easy maintenance
- Designed for harsh environments
- Improves safety and productivity
- Simplifies installation
- Exclusive IP68 rating for long-term submersion
General Information
Name: Leviton 320MI6WLEV LEV Series Pin and Sleeve Mechanical Interlock, 2-Pole, 3-Wire, 20A 240V, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-320MI6WLV Brand Name Leviton Country of Origin MX Manufacturer Part Number 320MI6WLEV Product Name LEV Series IEC Pin & Sleeve Mechanical Interlock Product Type Mechanical Interlock
American Wire Gauge 10AWG, 4AWG Contact Plating Nickel
CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -40°C to 75°C
Color Blue Material Polycarbonate
Voltage Rating 240V AC
Limited Warranty 5-Year
