Product Overview

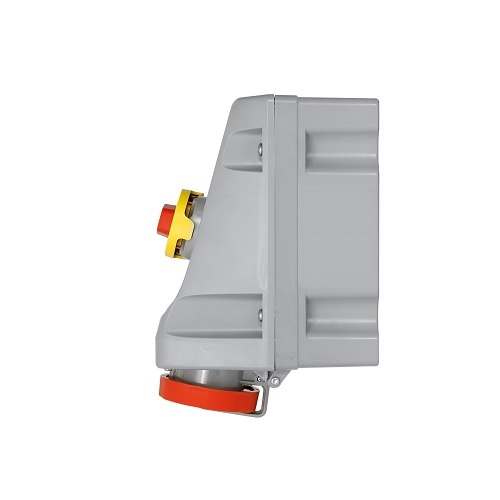

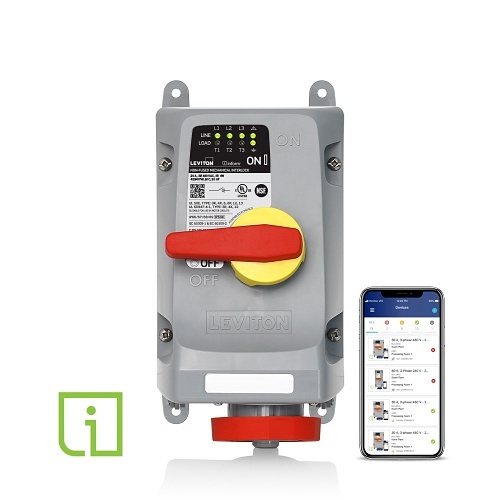

20 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Mechanical Interlock with Local and Remote Monitoring Inform Technology, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused, Wi-Fi (no hub required). Requires Internet connection for remote monitoring. – Red (480 VAC) LEV Series IEC Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity; Bottom hinged cover design makes installation and maintenance quicker and easier Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion NSF certified sanitary design trusted for use in food and beverage facilities.
Main Features
- 20 Amp, 480 Volt 3-Phase, 3P, 4W

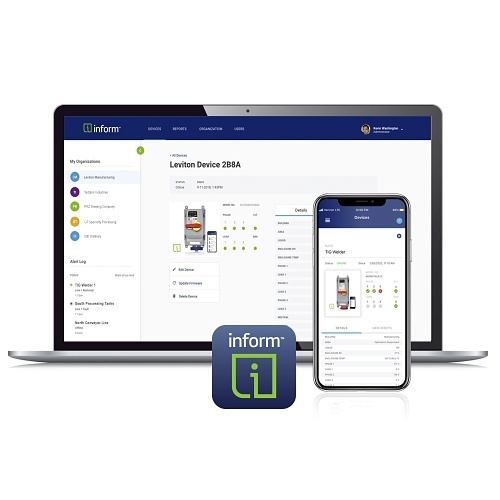

- Local and Remote Monitoring with Inform Technology
- Industrial Grade, IP66/IP67/IP68/IP69/IP69K
- Wi-Fi Enabled, No Hub Required
- NSF Certified for Food and Beverage Use
- Superior Watertight Ratings for Harsh Environments
- Bottom Hinged Cover for Easy Installation and Maintenance
- Red Color for 480 VAC Applications
- Simplifies Installation and Improves Safety
- NSF Certified for Food and Beverage Facilities
General Information
Name: Leviton 420MI7WLEVC Mechanical Interlock, 20A, Red
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-420MI7LVC Brand Name Leviton Country of Origin MX Manufacturer Part Number 420MI7WLEVC Product Name LEV Series IEC Pin & Sleeve Mechanical Interlock Product Type Mechanical Interlock
American Wire Gauge 10AWG, 4AWG Contact Plating Nickel
CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -40°C to 60°C
Color Red Material Plastic
Voltage Rating 480V AC
Limited Warranty 5-Year

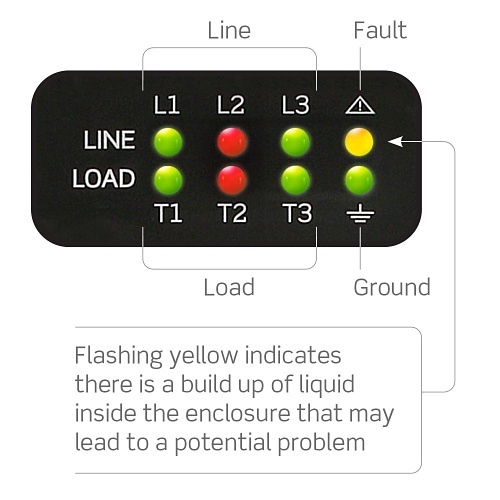

Features LED Indication, Wi-Fi Enabled
