Product Overview

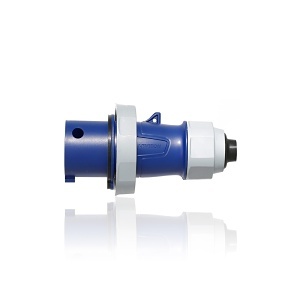

20 Amp, 250 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Plug with Screwless Clamp Assembly, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue LEV Series IEC Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity; Completely screwless back clamp cuts installation time and adds additional dust guard protection Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion NSF certified sanitary design trusted for use in food and beverage facilities Leviton Pin and Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Main Features
- 20 Amp, 250 Volt 3-Phase Plug
- Screwless Clamp for Easy Installation
- Industrial Grade, IP66/IP67/IP68/IP69K
- Watertight for Harsh Environments
- NSF Certified for Food & Beverage Use
- UL Listed for Safety Compliance
- Blue LEV Series IEC Design
- Dust Guard for Extra Protection
General Information
Name: Leviton 420P9WLEVA 20A Pin and Sleeve Plug, NSF, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs, Power Connectors
UPC Code: 78477510919
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-420P9WLVA Brand Name Leviton Country of Origin MX Manufacturer Part Number 420P9WLEVA Product Name LEV Series IEC PinAnd Sleeve Plug with Screwless ClAAssembly Product Type Pin & Sleeve Plug
American Wire Gauge 10AWG, 4AWG
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -40°C to 60°C
Color Blue Material Stainless Steel
Voltage Rating 250V AC, 600V
Limited Warranty 5-Year
Features Screwless Clamp Assembly
