Leviton 430MI5WLEV Pin and Sleeve Mechanical Interlock, 30A, Black
430MI5WLEV
|LV-430MI5WLV
Shop All Leviton
Leviton 430MI5WLEV Pin and Sleeve Mechanical Interlock, 30A, Black
430MI5WLEV | LV-430MI5WLV
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
30 Amp, 600 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Mechanical Interlock, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight, Non-Fused - Black LEV Series IEC Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity; Bottom hinged cover design makes installation and maintenance quicker and easier Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion NSF certified sanitary design trusted for use in food and beverage facilities.
Main Features
- 30 Amp, 600 Volt 3-Phase Interlock
- Industrial Grade, IP66/IP67/IP68/IP69K
- Watertight for harsh environments

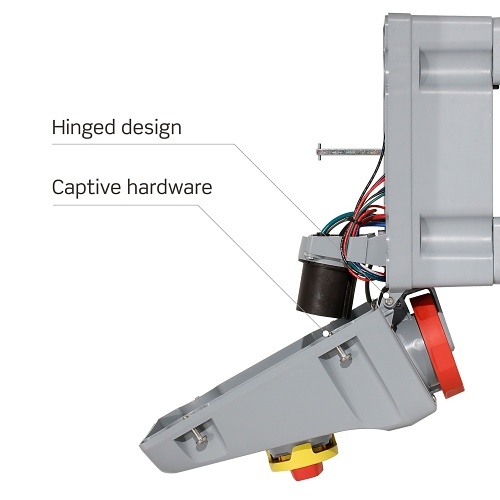

- Bottom hinged cover for easy maintenance
- NSF certified for food and beverage use
- IEC 60309-1 and 60309-2 compliant
- Non-Fused, Black LEV Series
- IEC 60309-1 and 60309-2 Compliant
General Information
Name: Leviton 430MI5WLEV Pin and Sleeve Mechanical Interlock, 30A, Black
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs, Power Connectors
UPC Code: 78477251430
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-430MI5WLV Brand Name Leviton Country of Origin MX Manufacturer Part Number 430MI5WLEV Product Name LEV Series IEC Pin & Sleeve Mechanical Interlock Product Type Mechanical Interlock
American Wire Gauge 10AWG, 4AWG Contact Plating Nickel over Copper
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -40°C to 75°C
Color Black Material Polycarbonate
Voltage Rating 600V AC
Limited Warranty 5-Year
