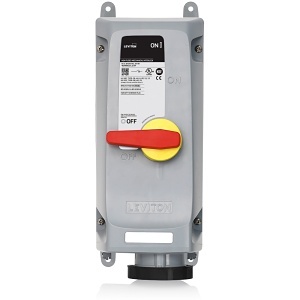

Leviton 460MI5WLEV LEV Series Mechanical Interlock, 3-Phase, 3P, 4W, 60A, 600V, Black
460MI5WLEV
|LV-460MI5WLV
Shop All Leviton
Leviton 460MI5WLEV LEV Series Mechanical Interlock, 3-Phase, 3P, 4W, 60A, 600V, Black
460MI5WLEV | LV-460MI5WLV
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
60 Amp, 600 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Mechanical Interlock, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight, Non-Fused - Black LEV Series IEC Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity; Bottom hinged cover design makes installation and maintenance quicker and easier Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion NSF certified sanitary design trusted for use in food and beverage facilities.
Main Features
- 60A, 600V 3-Phase, 3P, 4W
- Industrial Grade Mechanical Interlock
- IP66/IP67/IP68/IP69K Watertight Ratings
- Non-Fused Design for Safety
- Bottom Hinged Cover for Easy Maintenance
- NSF Certified for Food and Beverage Use
- Simplifies Installation and Enhances Safety
- Endures Harsh Environments
General Information
Name: Leviton 460MI5WLEV LEV Series Mechanical Interlock, 3-Phase, 3P, 4W, 60A, 600V, Black
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-460MI5WLV Brand Name Leviton Country of Origin MX Manufacturer Part Number 460MI5WLEV Product Name LEV Series IEC Pin & Sleeve Mechanical Interlock Product Series LEV Product Type Mechanical Interlock
American Wire Gauge 10AWG, 4AWG Contact Plating Nickel over Copper
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -40°C to 75°C
Color Black Material Polycarbonate
Current Rating 60.00A Input Voltage 600V AC Voltage Rating 600V AC
Limited Warranty 5-Year
