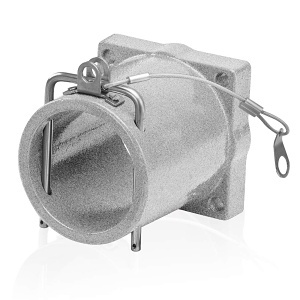

Leviton 49CSR 49 Series Rhino-Hide Receptacle Housing for Single Pole Connector, Cast Aluminum, Silver

49CSR

|

LV-49CSR

Sign In for Dealer Pricing

New to ADI?Become a Customer
Shop All Leviton

Leviton 49CSR 49 Series Rhino-Hide Receptacle Housing for Single Pole Connector, Cast Aluminum, Silver

49CSR | LV-49CSR

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

Receptacle Housing, Rhino-Hide Single Pole Connector, Cast Aluminum - SILVER Rhino-Hide 49 Series Male and Female Connectors and Panel Receptacles are engineered to exceptional standards for high-amperage power delivery on land-based and offshore oil and gas rigs. Rhino-Hide single pole connectors and receptacles are designed to deliver up to 1,000 Volts AC or DC and up to 1,135 Amps of continuous power under the most extreme conditions with cables ranging in size from 313 MCM to 777 MCM. Designed to mate with other manufacturers’ high-amperage single pole connectors and receptacles, Rhino-Hide single pole devices can be installed on both existing silicon controlled rectifiers (SCR’s) and generator stations or on new oil and gas rig construction.

Main Features

  • High-amperage power delivery up to 1,135 Amps
  • Supports up to 1,000 Volts AC or DC
  • Compatible with other manufacturers' connectors
  • Durable cast aluminum construction
  • Suitable for extreme conditions
  • Fits cable sizes from 313 MCM to 777 MCM
  • Ideal for oil and gas rigs
  • Engineered for land-based and offshore use

General Information

Name: Leviton 49CSR 49 Series Rhino-Hide Receptacle Housing for Single Pole Connector, Cast Aluminum, Silver
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code: 78477288672
Country of Origin: . Country of origin is subject to change.
