Product Overview

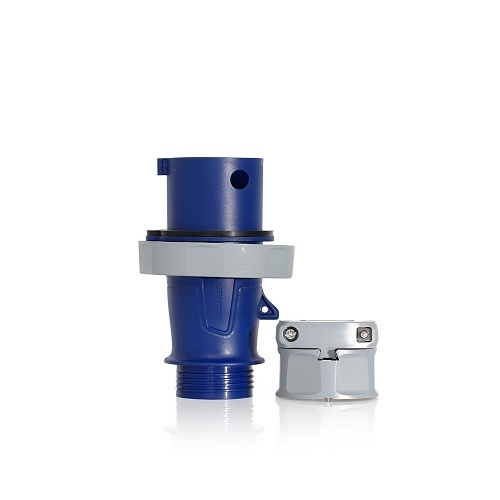

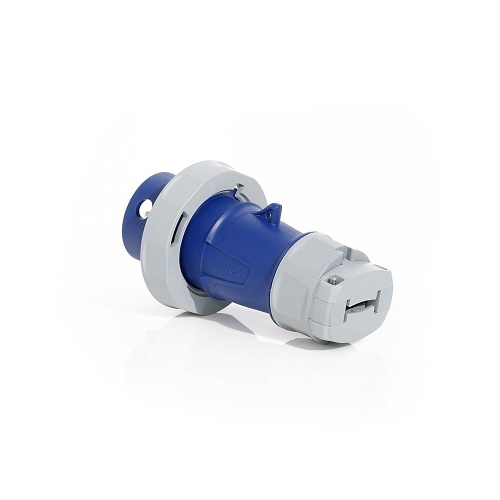

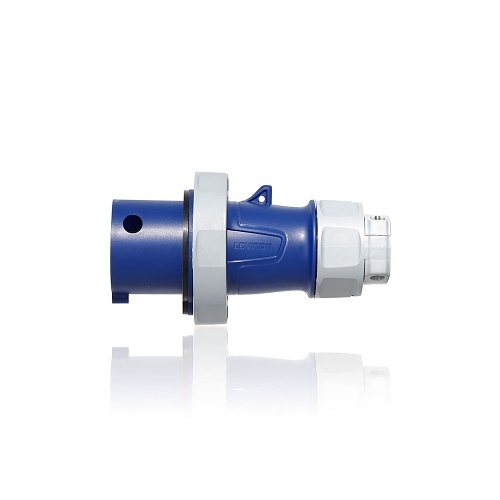

20 Amp, 120/208 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 and 60309-2-Rated Pin and Sleeve Plug, Industrial Grade, IP66/67/68/IP69K, Watertight - BLUE LEV Series IEC 60309 Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and outlast the competition; Improved speed of assembly with threaded housings that have less screws for reduced installation time Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68 Best in class 5-year limited warranty Leviton Pin and Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Main Features
- 20 Amp, 120/208 Volt 3-Phase plug
- 4P, 5W, North American-Rated IEC 60309-1/2
- Industrial Grade, IP66/67/68/IP69K Watertight
- Simplified installation with threaded housings
- Superior watertight ratings for harsh environments
- Industry exclusive submersible IP68
- 5-year limited warranty
- UL listed components
General Information
Name: Leviton 520P9WLEV 20A Pin and Sleeve Plug, 20A, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-520P9WLEV Brand Name Leviton Country of Origin MX Manufacturer Part Number 520P9WLEV Product Name LEV Series IEC Pin and Sleeve Plug Product Type Pin & Sleeve Plug
American Wire Gauge 10AWG, 4AWG
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Color Blue Material Stainless Steel
Voltage Rating 120VAC, 208V AC, 600V
Limited Warranty 5-Year
