Product Overview
30 Amp, 277/480 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Mechanical Interlock, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight, Non-Fused - Red LEV Series IEC Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity; Bottom hinged cover design makes installation and maintenance quicker and easier Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion NSF certified sanitary design trusted for use in food and beverage facilities.
Main Features
- 30A, 277/480V 3-Phase, 4P, 5W Interlock
- Industrial Grade, Non-Fused Design
- IP66/IP67/IP68/IP69K Watertight Ratings
- NSF Certified for Food & Beverage Use
- Bottom Hinged Cover for Easy Maintenance
- Designed for Harsh Environments
- Improves Safety and Productivity
- North American-Rated IEC 60309-1/2
General Information

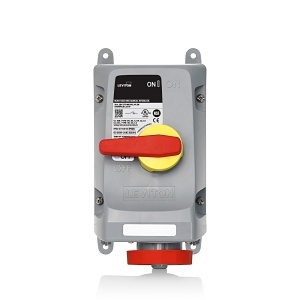

Name: Leviton 530MI7WLEV Mechanical Interlock, 30A, Red
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-530MI7WLV Brand Name Leviton Country of Origin MX Manufacturer Part Number 530MI7WLEV Product Name LEV Series IEC Pin & Sleeve Mechanical Interlock Product Type Mechanical Interlock
American Wire Gauge 10AWG, 4AWG Contact Plating Nickel over Copper
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -40°C to 75°C
Color Red Material Polycarbonate
Voltage Rating 277/480V AC
Limited Warranty 5-Year
