Product Overview

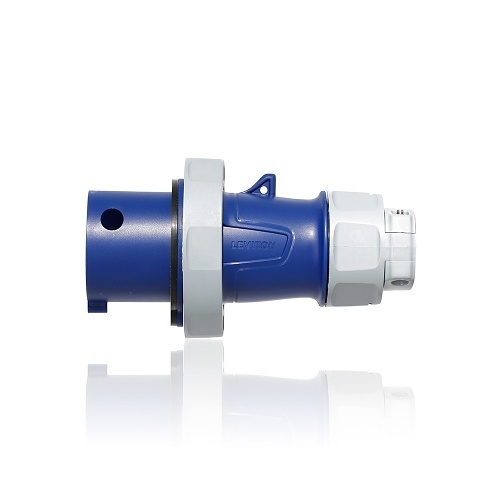

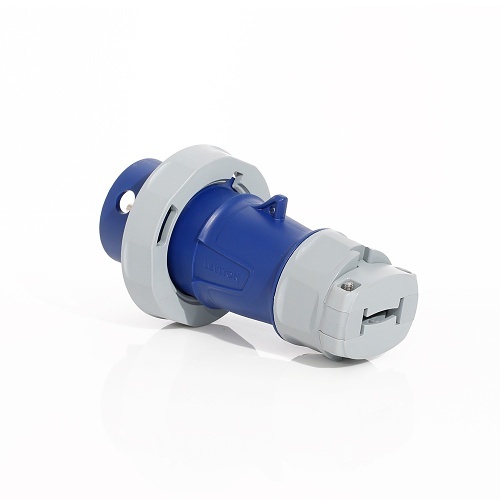

30 Amp, 120/208 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Plug, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue LEV Series IEC 60309 Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity; Threaded housing design removes several screws making installation quicker and easier Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion NSF certified sanitary design trusted for use in food and beverage facilities Leviton Pin and Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Main Features
- 30 Amp, 120/208 Volt 3-Phase Plug
- 4P, 5W, Industrial Grade
- IP66/IP67/IP68/IP69K Watertight

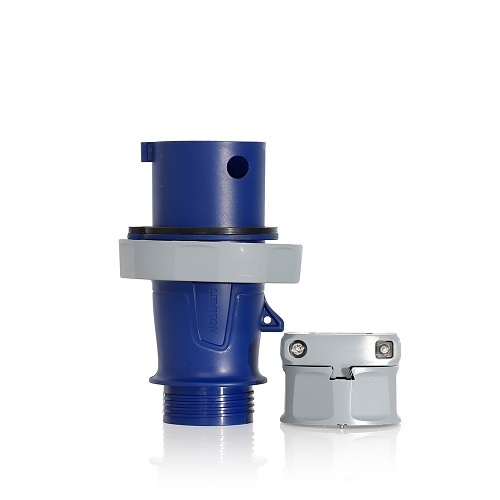

- Simplified Installation with Threaded Design
- NSF Certified for Food & Beverage Use
- UL Listed for Safety Compliance
- Suitable for Prefabricated Wiring
General Information
Name: Leviton 530P9WLEV 30A Pin and Sleeve Plug, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs, Power Connectors
UPC Code: 78477920862
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-530P9WLEV Brand Name Leviton Country of Origin MX Manufacturer Part Number 530P9WLEV Product Name LEV Series IEC Pin and Sleeve Plug Product Type Pin & Sleeve Plug
American Wire Gauge 10AWG, 4AWG
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Color Blue Material Stainless Steel
Voltage Rating 120VAC, 208V AC, 600V
Limited Warranty 5-Year
