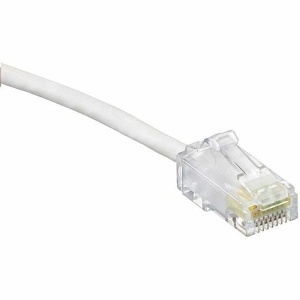

Leviton 6H460-10W CAT6 28/8 High-Flex Patch Cable, CMR, 10' (3m), White
6H460-10W
|LV-6H46010W
Shop All Leviton
Leviton 6H460-10W CAT6 28/8 High-Flex Patch Cable, CMR, 10' (3m), White
6H460-10W | LV-6H46010W
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Cat 6 Small Diameter High-Flex Patch Cords are designed to be used in 1-Gigabit applications and all frequencies from 1 to 250 MHz. Patch cords offer flexible, high-density patching. Cables support high-speed data applications. They reduce patch cord density in a 24-port patch panel by 38 percent when compared to typical Cat 6 patch cords.
Main Features
- Available in white, yellow, gray, black, red, green, and blue
- Available in stock lengths of 6" (0.15m) and 1-20' (0.30 - 6.0m) in 1-foot (0.3m) increments
- Power over Ethernet (PoE and PoE+) compatible
- Accommodate use in high-density switches, routers, and other electronics
- Bend radius is a narrow 0.60 inches (15.2mm), versus 1.0 inch (25.4mm) for typical Cat 6 patch cords
- Snagless plug design with integrated strain-relief
- Plug contacts rated to 2,500 mating cycles
- Dual-rated cable jacket (CM/LSZH)
- Accepts clip-on colored boot markers for network identifications
- Compatible with Leviton Secure RJ system
General Information
Name: Leviton 6H460-10W CAT6 28/8 High-Flex Patch Cable, CMR, 10' (3m), White
Category: Leviton, Wire & Cable, Network Patch Cords, Category 6 Patch Cords
UPC Code: 78477669242
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number LV-6H46010W Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 6H46010W Packaged Quantity 1 Product Name Cat 6 Small Diameter High-Flex Patch Cord, 10 ft (3.0 m), White Product Type Network Cable
American Wire Gauge 28AWG Cable Type Telephone Cable Contact Plating Gold Device Supported Network Device, Patch Panel, Router, Switch Shielding No Solid or Stranded Stranded
RoHS Compliant Compliant
Data Transfer Rate 1Gbps
Cable Length 10.00' Color White Jacket Material LSZH
Length 10.00'
Environmental Certification RoHS 2 Environmentally Friendly Yes Features Bendable, Cisco UPOE, Cisco UPOE+, Clip-on Cable, Flexible, PoE, PoE+, PoH, Snag Free, Strain Relief, Stranded, Unshielded Twisted Pair (UTP)
