Leviton 74W49-C Weatherproof Locking Connector L6-15, 250V, Yellow
74W49-C
|LV-74W49C
Shop All Leviton

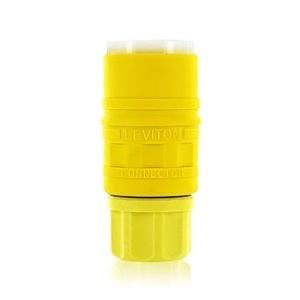

Leviton 74W49-C Weatherproof Locking Connector L6-15, 250V, Yellow
74W49-C | LV-74W49C
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
15 Amp, 250 Volt, NEMA L6-15, 2P, 3W, Locking Connector for Single Inlet, Industrial Grade, Grounding, Wetguard - YELLOW BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance THE BRAND YOU TRUST- Backed by a lifetime warranty.
Main Features
- 15 Amp, 250 Volt, NEMA L6-15 Locking Connector
- Industrial Grade, Grounding, Wetguard - Yellow
- Resistant to water, acids, alkalies, lubricants, and solvents
- IP69K rated for high-temp, high-pressure washdowns
- Exclusive tongue and groove design for ingress protection
- Heavy-duty, one-piece contacts for max conductivity
- Backed by a lifetime warranty
General Information
Name: Leviton 74W49-C Weatherproof Locking Connector L6-15, 250V, Yellow
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-74W49C Brand Name Leviton Country of Origin MX Manufacturer Part Number 74W49-C Product Name Wetguard Watertight Locking Connector Product Type Locking Connector
American Wire Gauge 10AWG, 4AWG
CSA Listed Yes RoHS Compliant Compliant
Operating Temperature (T-T) -40°C to 60°C
Color Yellow Material Nylon (Polyamide), Brass
Voltage Rating 250V AC
