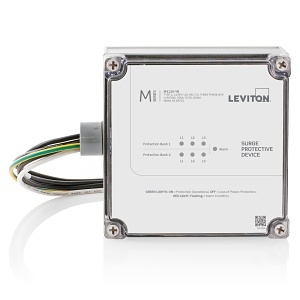

Leviton M3120-YB Type 2 Surge Protective Device, 208Y / 120VAC, 3-Phase WYE
M3120-YB | LV-M3120YB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
M Series Type 2 Surge Panel, 208Y/120VAC, ThreePhase WYE, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data L-N; 600, L-G; 700, N-G; 600, L-L; 1000, Maximum Continuous Operating Voltage (MCOV); 150V/300V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length 28.
Main Features
- Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
- Ideal for Point-Of-Entry Or Main Service Entrance Installations, the M series offers greater protection in a wide variety of voltage configurations
- Code Compliant - in 2020, Article 23.67 of the National Electrical Code (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacen. The SPD must be a Type 1 or Type 2 SPD. The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
- Higher values are better
- The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels
- The maximum voltage a surge protector will let through to connected devices
- Lower values are better
- The maximum current a device or system can safely withstand for a specified time, or until a specified fuse or circuit breaker opens and clears the circuit
General Information
Name: Leviton M3120-YB Type 2 Surge Protective Device, 208Y / 120VAC, 3-Phase WYE
Category: Leviton, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-M3120YB Brand Name Leviton Manufacturer Part Number M3120-YB
American Wire Gauge 10AWG, 4AWG
CSA Listed Yes RoHS Compliant Not Compliant
Storage Temperature (T-T) -49°F to 140°F(-45°C to 60°C)
Color Gray Dimensions 7.69" x 2.99" x 6.89" Material Polycarbonate
Frequency 60Hz
Mount Type Surface Mount
Limited Warranty 5-Year
