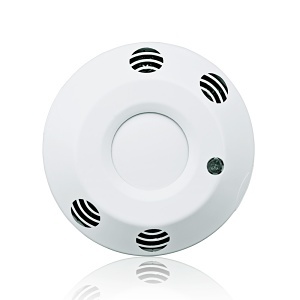

Leviton O2C20-UDW Occupancy Sensor with Integrated Photocell, Dual Relay, Ultrasonic Ceiling Mount, 120-277V, 2000 sq ft, White
O2C20-UDW
|LV-O2C20UDW
Shop All Leviton
Leviton O2C20-UDW Occupancy Sensor with Integrated Photocell, Dual Relay, Ultrasonic Ceiling Mount, 120-277V, 2000 sq ft, White
O2C20-UDW | LV-O2C20UDW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Occupancy Sensor with Photocell, Provolt lighting control, 2-Pole, Line Voltage, 8'-12' Ceiling Mounted, Ultrasonic, 2000 sq ft, Daylighting, Auto-Calibration, 120-277VAC/CA 50/60H. UL/CE, RoHS and CEC Title 20/24 complian. Color; White. The Leviton Provolt Dual Relay Occupancy Sensors combine line voltage occupancy sensors and photocells into a self-contained uni. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofit.
Main Features
- Utilizes sensors which emit non-audible sound waves and sense movemen. Any movement within the sensor’s field-of-view causes a shift in the original emitted frequenc. The sensor identifies the change as movement and controls light accordingl. U/S models are immune to external ultrasonic signals from other sources such as white-boards delivering uninterrupted performance
- Auto-Adapting; Time delay and sensitivity are continually adjusted to occupancy pattern of use
- Vacancy Sensing Time Outs; (Delayed OFF Timer, Exclusive Walk-through Feature, Time delay and saved settings are protected during power outages and will return to the last known state)
- Output short circuit protection
- Industry-exclusive self-configuring local manual switch input; Momentary or maintained switches are supported
- Presentation Mode allows user to turn lights OFF and keep them OFF while the room is occupied
- Adjustable Time Delay; 30s, 5min, 10min, 20min, 30min
- Test Mode for simplified commissioning
- Manual Switch and Emergency Override are Class 1 or Class 2 circuit. Class 2 circuits provided for flexibility
- Industry-exclusive “fail-safe” circuitry; In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
General Information
Name: Leviton O2C20-UDW Occupancy Sensor with Integrated Photocell, Dual Relay, Ultrasonic Ceiling Mount, 120-277V, 2000 sq ft, White
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code: 78477642757
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-O2C20UDW Application/Usage Auto ON/Auto OFF, Auto ON/Manual ON, Code Compliance, Daylight Harvesting, Fan Control, Manual ON/Auto OFF, Stairwell Control, Step Dimming Brand Name Leviton Country of Origin CN Manufacturer Part Number O2C20-UDW
Maximum Time Delay 30min Sensor Type Light Sensor, Proximity Sensor
RoHS Compliant Not Compliant
Operating Temperature (T-T) 0°C to 40°C Relative Humidity 0.9 Storage Temperature (T-T) -15°F to 160°F(-26°C to 71°C)
Color White Size 4.80" x 2.27"
Frequency 60Hz Input Voltage 120V, 230V, 277V AC
Mount Type Ceiling Mount
Limited Warranty 5-year
Features Ultrasonic Line Voltage Dual Relay
