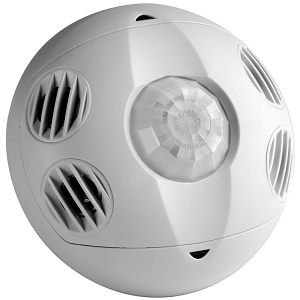

Leviton OSC10-M0W Occupancy Sensor Lighting Control, Ceiling Mount, White
OSC10-M0W
|LV-OSC10M0W
Shop All Leviton
Leviton OSC10-M0W Occupancy Sensor Lighting Control, Ceiling Mount, White
OSC10-M0W | LV-OSC10M0W
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Occupancy Sensor lighting control, Ceiling Mounted, Multi-technology, 24VDC, 35mA power consumption, 1000 sq ft, 360 degree (major motion: PIR: 40' diameter; U/S: 46'Lx23'W, minor motion: U/S: 34'Lx17'W), red LED=PIR, green LED-U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM/ANCE listed, CEC Title 24 compliant Color: off-white.
The most advanced sensor available. Combines multi-technology with all-digital architecture. Eliminates false triggering. The result is a trouble-free, “install and forget” solution for lighting control.
Main Features
- Installed sensor appears almost invisible
- Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment
- An internal microprocessor continually analyzes, evaluates and adjusts settings
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss
- Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light
- Excellent Warranty: 5-Year Limited warranty
- Typical Applications: Cafeteria, Computer Room, Conference Rooms, Office Private, Office Executive, Office w/Cubicles, Office Open, File Room, Classroom, Lounge, All Restroom types, Open Area, Work Space General, Workout Facility or Gymnasium
General Information
Name: Leviton OSC10-M0W Occupancy Sensor Lighting Control, Ceiling Mount, White
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code: 78477180570
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number LV-OSC10M0W Application/Usage Cafeterias, Classrooms, Computer rooms, Conference rooms, Day care centers, Executive, Filing rooms, Offices with cubicles, open and private offices, Open areas, Open warehouses, Restrooms, Stairwells, Storage rooms, Workspaces Brand Name Leviton Manufacturer Part Number OSC10-M0W
American Wire Gauge 10AWG, 4AWG
RoHS Compliant Not Compliant
Operating Temperature (T-T) 0°C to 40°C Relative Humidity 0.95
Color White Form Factor Ceiling Mount Size 4.20" x 1.57"
Mount Type Ceiling Mount
Limited Warranty 5-Year
