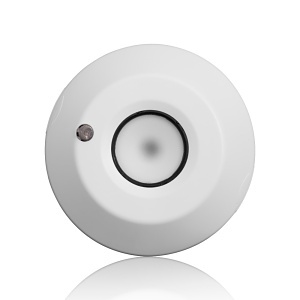

Leviton PCC2D-W Line Voltage Photocell, Dimming, Ceiling Mount, 1-10V, Dual Relay, ON/OFF, Provolt, White
PCC2D-W | LV-PCC2DW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Line Voltage Ceiling Mount Photocell, Low profile; Set/Off, Zone 1 Offset; 100%, Fade Rate; 30 Min, Demand Response; 75% (MFG Range 1-1600FC), Title 24 Compliant, ASHRAE 9.1 Compliant, Leviton Provolt Line Voltage Photocell is a first of- its-kind, self-contained mini daylight harvesting system offering the functionality of a 1-10V dimming photocell combined with the robustness of a Leviton power pac. Ideal for daylight harvesting applications and lighting control in airports lobbies, commercial lobbies, conference rooms and classroom. The integrated design eliminates the need for additional components such as a separate power pack and low voltage photocell making it a low-cost, efficient energy solution for new construction and retrofit. The Provolt Line Voltage Photocell uses patented daylighting design level technology to autocalibrate a room or corridor for a more accurate daylight harvesting operatio. The photocell maintains the architectural lighting design level through calculation and measurement of ambient (natural and artificial) lighting and fine dimming adjustmen. For installers, the Provolt Line Voltage Photocell provides a simple all-in-one solution for new construction and flexible retrofittin. This revolutionary photocell auto-detects existing momentary or maintained switches and will work automatically with eithe. The photocell also complies with growing energy regulations and includes a connection for emergency lighting and demand response to meet California Title 24 and ASHRAE Standard 9.1 201. Models; Single 1-10V dimming with single relay ON/OFF for single zone day/night single office or corridor Dual 1-10V dimming with dual relay ON/OFF for two zone classroom or large space Single 1-10V dimming with single/dual relay ON/OFF for single zone large office space or corridor.
Main Features
- Self-contained, open and closed loop daylight harvesting system
- Includes two removable light pipes (flat or angled) for open and closed loop daylight harvesting applications
- Dual Zone Dimming - use two photocells in a 2 circuit or 2 zone room for optimized daylight harvesting performance
- Leviton-exclusive auto-calibration eliminates the need for on-site configuring at a specific time of day
- Industry exclusive “fail-safe” circuitry assures lights ON to meet life safety requirements (NFPA101)
- Auto-detects momentary or maintained wall station for manual override control
- Manual calibration - used for precise fine tuning and open loop applications
- Low voltage contact closure uses; - Wall station - dimming/switching and daylight harvesting Emergency lighting - energy savings and safety - Demand response - meets energy codes - BMS integration - incorporate into whole building controls
- Dim to OFF - switches load off when minimum level is reached for maximum savings
- Forced ON - user forces lights on for 2hr through wall station, auto-exit to daylighting state
General Information
Name: Leviton PCC2D-W Line Voltage Photocell, Dimming, Ceiling Mount, 1-10V, Dual Relay, ON/OFF, Provolt, White
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code: 78477688748
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-PCC2DW Brand Name Leviton Country of Origin CN Manufacturer Part Number PCC2D-W
Certifications & Standards cUL Listed RoHS Compliant Not Compliant
Operating Temperature (T-T) 0°C to 40°C Relative Humidity 1.9
Input Voltage 120-277V AC
