Product Overview
Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
Main Features
- PDU distributes AC power to multiple servers and balances the load on the servers
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
- IEC 60320 C19 receptacle type to ensure maximum dependability and optimal performance
- Three Phase phase PDU provides optimal power output with added usability
- IEC 60309 460P9 plug/connector type for reliable, productive connectivity and optimal power output
- 230 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for optimal performance with maximum feasibility
General Information

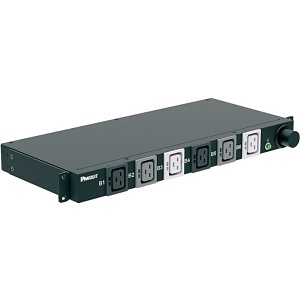

Name: Panduit P06B03M Basic PDU, 60A, 208V, (6) C19
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 613056263383
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-P06B03M Brand Name Panduit Country of Origin IN Manufacturer PANDUIT CORP Manufacturer Part Number P06B03M Packaged Quantity 1 Product Line SmartZone Product Model P06B03M Product Name P06B03M Horizontal Basic Power Distribution Unit Product Type PDU
Output Voltage 208V AC PDU Type Basic Phase Three Phase Receptacle Detail 6 x IEC 60320 C19 Receptacle Type IEC 60320 C19
Remote Outlet Switching No
Depth 7.80" Height 1.70" Mounting Orientation Horizontal Rack Height 1U Width 17.50"
Input Current 60A Input Voltage 230V AC Plug/Connector Type IEC 60309 460P9
Mount Type Rack Mount Protection Type Double Pole
Limited Warranty 3-Year
Environmentally Friendly Yes
