Panduit CCSSTR2632-X Cable Cleat, Stainless Steel, Trefoil
CCSSTR2632-X
|P9-SSTR2632X
Shop All Panduit
Panduit CCSSTR2632-X Cable Cleat, Stainless Steel, Trefoil
CCSSTR2632-X | P9-SSTR2632X
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

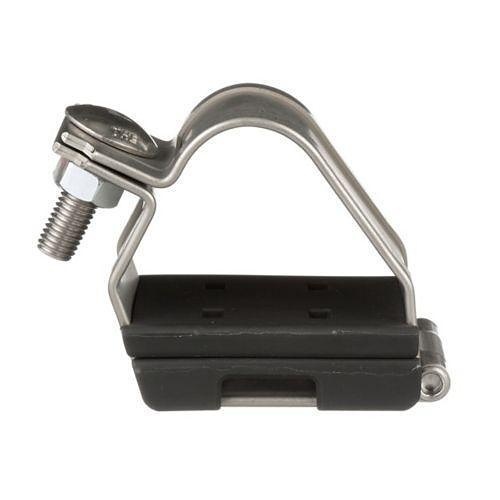

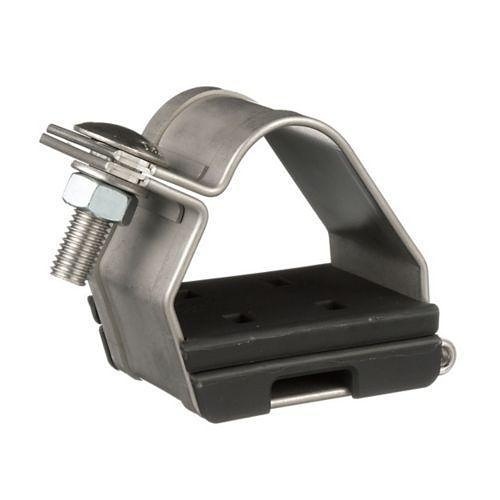

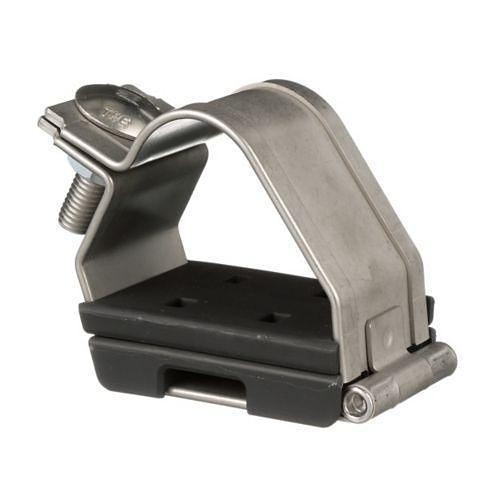

The CCSSTR2632-X Stainless Steel Trefoil Cable Cleat offers protection against extreme environments and high short-circuit current faults. The cable cleat is certified to IEC 61914;2015, tested up to 172 kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 26-32mm and installs using a separately sold mounting bracket or directly to the cable tray rung via fixing hole and user-supplied M8 bolt. Features 316L stainless steel and removable spacer.
Main Features
- Certified to IEC 61914;2015 standard
- Tested up to 172 kA peak fault current
- Compatible with cable diameter 26-32mm
- Includes 316L stainless steel construction

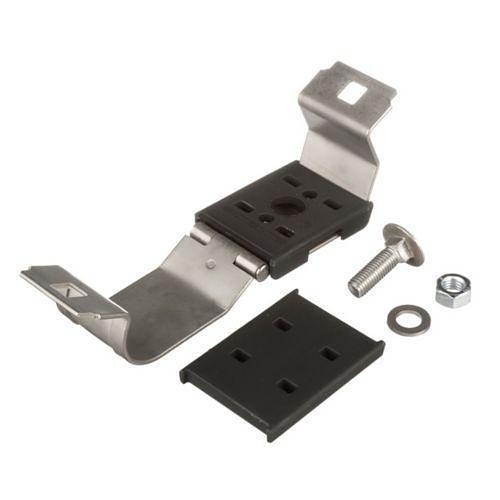

- Removable spacer design
- Installs using separately sold mounting bracket
- Can be mounted directly to cable tray rung with M8 bolt
General Information
Name: Panduit CCSSTR2632-X Cable Cleat, Stainless Steel, Trefoil
Category: Panduit, Tools & Hardware, Tools, Clips & Clamps
UPC Code: 613056449299
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-SSTR2632X Brand Name Panduit Manufacturer Part Number CCSSTR2632-X
Material Stainless Steel
Indoor/Outdoor Indoor, Outdoor
