Product Overview

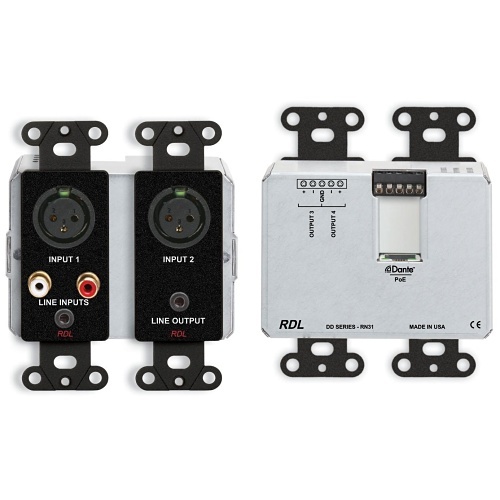

The DDB-RN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input, left and right RCA jack inputs and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. The module is configured and adjusted using RDL CONSOLE or other network control software. The DD-RN31 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-RN31 is PoE powered, and is available in multiple finishes with optional customized graphics.
Main Features
- Dante Network Interface for Four Audio Inputs and Four Audio Outputs
- One Mini-Jack, Two RCA Jacks and Two XLR Front-Panel Inputs
- One Mini-Jack Front-Panel Output
- Two Balanced Outputs on Rear-Panel Terminal Block
- Module is Configured and Adjusted Using Network Control Software
- Q-SYS Plug-InAvailable for Configuring in Q-SYS Environment
- Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
- Each Input Gain is Selected by Software
- Mic Gain - 35 dB, 42 dB or 59 dB
- Line Gain - Unity or 12 dB
General Information
Name: RDL DDB-RN31 Wall-Mounted Bi-Directional Mic/Line Dante Interface 4x4
Category: Radio Design Labs, Pro AV, Commercial Audio, Pro Wall Plates
UPC Code: 813721012890
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number RL-DDBRN31 Brand Name Radio Design Labs Manufacturer Part Number DDB-RN31
