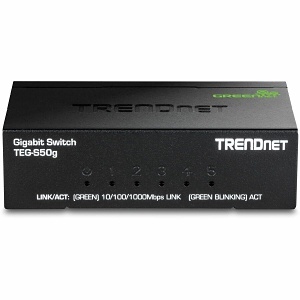

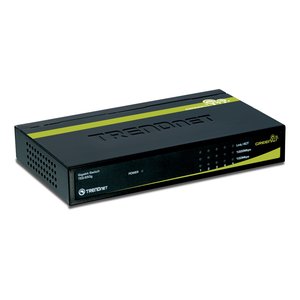

TRENDnet TEG-S50g 5-Port Gigabit GREENnet Mini Switch, 10 Gbps
TEG-S50G | TQ-TEGS50G
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The compact TEG-S50G 5-Port Gigabit GREENnet Ethernet Switch provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Boost your office efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 10Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.
Main Features
- 5 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
- GREENnet technology reduces power consumption when; a- Ethernet port is not in use, b- Connected device is turned off, c- Connected device is in power-saving mode, d- Based on Ethernet cable length
- Store-and-Forward switching architecture with non-blocking wire-speed performance
- IEEE 802.3x Flow Control for full-duplex mode
- Back pressure Flow Control for half-duplex mode
- Integrated address look-up engine with 4K absolute MAC address table and 104KBytes RAM data buffering
- Operates and maximizes packet filtering and forwarding rate
- Jumbo Frame support up to 12KBytes
- Sturdy metal housing
- Diagnostic LEDs and Plug and Play
General Information
Name: TRENDnet TEG-S50g 5-Port Gigabit GREENnet Mini Switch, 10 Gbps
Category: TRENDnet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 710931610147
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TEGS50G Brand Name TRENDnet Country of Origin TW Manufacturer TRENDnet Manufacturer Part Number TEG-S50G Product Line GREENnet Product Model TEG-S50G Product Name 5-port Gigabit GREENnet Switch (Metal) Product Series TEG Product Type Ethernet Switch
Maximum Data Transfer Rate 1Gbps Media Type Supported Twisted Pair Network Switch Type Unmanaged Power Consumption 11W
Energy Star Yes NDAA Compliant Yes TAA Compliant Yes
Shared SFP Slot No
Modular No Network (RJ-45) Yes Total Number of Network Ports 5 Uplink Port No
Manageable No
Network Technology 10/100/1000Base-T
Ethernet Technology 1 Gbps (Gigabit Ethernet) Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Depth 8.0" Height 2.0" Material Metal Width 6.0"
Frequency 60Hz Input Voltage 100-240V AC PoE (RJ-45) Port No Power over Ethernet (PoE) No Power Source AC Power
Length 4.6" Mount Type Desktop Mount
ADI Part Number Replaces TQ-TEGS51, FP-LS1005G, FP-TLSG105S, FP-DS105G, FP-TLSG105 Model Number Replaces TEG-S51, LS1005G, TL-SG105S, DS105G, TL-SG105
Limited Warranty Lifetime
Environmental Certification RoHS, WEEE Environmentally Friendly Yes Features Fanless Package Contents - 5-Port Gigabit GREENnet Switch
- Multi-Language Quick Installation Guide
