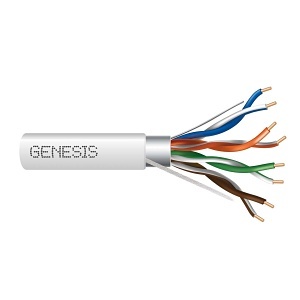

ADI PRO 0E-CAT5RWH CAT5e Riser Cable, 24/4 Solid BC, U, UTP, CMR/FT4, Sunlight Resistant, 1000' (304.8m) Express Box, White
0E-CAT5RWH
|0E-CAT5RWH
Shop All ADI PRO
ADI PRO 0E-CAT5RWH CAT5e Riser Cable, 24/4 Solid BC, U, UTP, CMR/FT4, Sunlight Resistant, 1000' (304.8m) Express Box, White
0E-CAT5RWH | 0E-CAT5RWH
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
ADI PRO CAT5 Riser Cable is UL-certified and features 24AWG with 4 solid bare annealed copper conductor pairs. Our wire is fully tested to exceed industry standards to satisfy the needs of present and future networks in the market. Also available in other colors.
Main Features
- ANSI/TIA-568.2-D STANDARDS/ETL tested to 350MHz
- 1000' Express Box, 100% Copper
- 24AWG Solid Bare Annealed Copper
- HDPE (High Density Polyethylene)
- UL/cUL ETL
- 24AWG/4-Pair UTP Tested
- Meets all ANSI/TIA 568 C.2 standards
General Information
Name: ADI PRO 0E-CAT5RWH CAT5e Riser Cable, 24/4 Solid BC, U, UTP, CMR/FT4, Sunlight Resistant, 1000' (304.8m) Express Box, White
Category: ADI PRO, Wire & Cable, Network Cables, Category 5e Network Cables, ADI Exclusive
UPC Code: 840049300620
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number 0E-CAT5RWH Brand Name ADI PRO Country of Origin KR Manufacturer ADI PRO Manufacturer Part Number 0E-CAT5RWH Package Type Pull Box Packaged Quantity 1 Product Model 0E-CAT5RWH Product Name CAT 5 24/4 Riser Rated 1000ft. Cable, White Product Type Network Cable, Riser Cable
American Wire Gauge 24AWG Cable Rating Riser Cable Type Category 5e Conductor Count 4 Conductor Material Copper Jacket Type TC Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
Cable Length 1000' Color White Height 13.5" Insulation Material HDPE (High-Density Polyethylene) Jacket Material PVC (Polyvinyl Chloride) Material Copper
Maximum Operating Voltage 300V
Length 1000.0'
ADI Part Number Replaces W1-T5ER10WHT,W1-T5E100WHT Model Number Replaces NST-CAT5ER-1000-WHT,NST-CAT5E-1000-WHT
Limited Warranty Limited Lifetime
