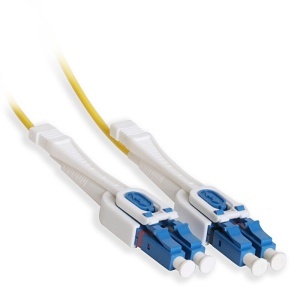

Cleerline UOS2LCLC01M-UPC SSF OS2 Uniboot Patch Cable, LC/UPC-LC/UPC, 2.0 mm Riser, (1m) 3.3', Yellow
UOS2LCLC01M-UPC
|CC-CNU01MUPC
Cable Length: 3.3'
Color: Yellow
Fiber Category: OS2
Shop All Cleerline
Cleerline UOS2LCLC01M-UPC SSF OS2 Uniboot Patch Cable, LC/UPC-LC/UPC, 2.0 mm Riser, (1m) 3.3', Yellow
UOS2LCLC01M-UPC | CC-CNU01MUPC
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Cleerline™ Uniboot Patch Cables provide high bandwidth signal transmission in a design optimized for high volume applications. Each Uniboot connector has a removable cover, allowing easy polarity adjustment without additional tools. Additionally, connectors feature removable pull tab for quick connector changes in tight spaces. All cables have robust strain relief to maximize fiber protection. The Uniboot patch cable contains two strands of single-mode OS2 fiber within a 2. 0 mm jacket, reducing the required cable space by over 50% compared to a duplex patch cable. Uniboots have a riser rated outer jacket and are color-coded according to TIA standards.
Main Features
- LC Uniboot Connector
- Removable connectors cover for easy polarity adjustment
- Polarity coded connectors for identification
- Removable pull bar
- Increased flexibility ideal for high density environments
- Compatible with standard duplex LC adapter and feedthroughs
- High mechanical strength, superior fatigue
- Conform to IEC, EIA-TIA, and Telcordia requirements
- TIA color-coded
- Riser rated OFNR jacket type
General Information
Name: Cleerline UOS2LCLC01M-UPC SSF OS2 Uniboot Patch Cable, LC/UPC-LC/UPC, 2.0 mm Riser, (1m) 3.3', Yellow
Category: Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Patch Cords
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number CC-CNU01MUPC Brand Name Cleerline Manufacturer Part Number UOS2LCLC01M-UPC Product Line SSF Uniboot Product Type Patch Cable
Boot Type Uniboot Cable Rating Riser Fiber Category OS2 Fiber Optic Mode Single-mode Jacket Type TC
Connector Type LC/UPC
Cable Length 3' Color Yellow
Diameter 2.0mm
ADI Part Number Alternative CC-UOS2LCLC01MUPC ADI Part Number Replaces CC-UOS2LCLC01MUPC Model Number Replaces UOS2LCLC01M-UPC
Limited Warranty 5-Year
