Genesis 44061104 16/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, Red
44061104|WG-44061104
Color: Red
Cable Length: 1000'

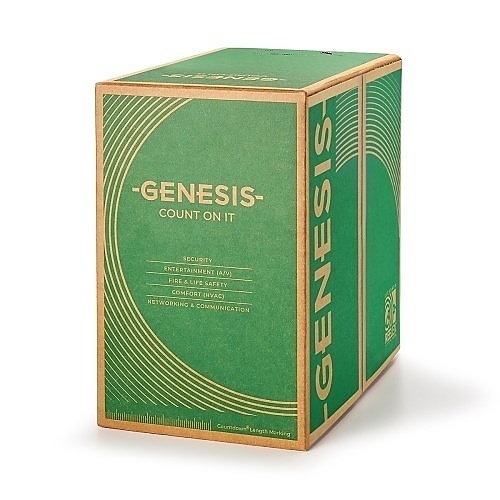

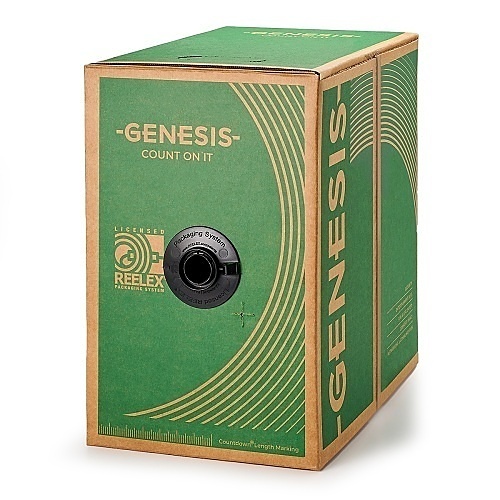

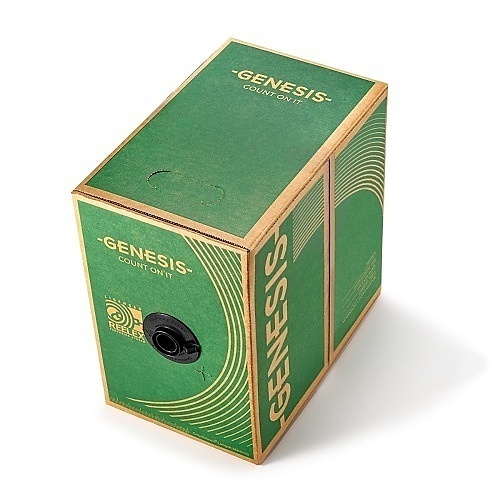

Package Type: Pull Box
Number of Conductors: 2
American Wire Gauge: 16AWG
Genesis 44061104 16/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, Red
44061104|WG-44061104
Color: Red
Cable Length: 1000'
Package Type: Pull Box
Number of Conductors: 2
American Wire Gauge: 16AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors

Genesis
Genesis 44061104 16/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, Red
44061104 | WG-44061104
Please sign in to view pricing and availability and to add to cart.
Recommended
BG-12LX | FL-BG12LX
Sign In for Dealer Pricing
H365 | FL-H365
Sign In for Dealer Pricing
MDF-300 | FL-MDF300
Sign In for Dealer Pricing
MMF-300 | FL-MMF300
Sign In for Dealer Pricing
SD365 | FL-SD365
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 44061104 16/2 Solid Shielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, Red
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Non-Plenum Shielded Cables
UPC Code: 619172025317
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-44061104 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 44061104 Packaged Quantity 1 Product Model 44061104 Product Name 16 AWG 2C SOL Shielded Riser, Red, 1000 ft. Pull Box Product Type Fire Alarm Cable Weight 24.80 lb
-
American Wire Gauge 16AWG Cable Rating Riser Conductor Count 2 Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 16/2 Device Supported Fire Alarm Jacket Material PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Solid
-
TAA Compliant Yes
-
Cable Length 1000' Color Red Insulation Material PP Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Sunlight Resistant, UV Resistant Indoor/Outdoor Indoor
