Product Overview
The GRI 100 style switch set is our most popular miniature surface mount. Available in both flanged: 100-12 and without flanges: 110-12, this low profile series is perfect for residential and commercial use where a larger configuration is not appropriate. Available in regular and wide gap, the set incorporates into most decor requirements without being noticeable.
The 100 Series come with mounting screws. Both the 100 and 110 are furnished with adhesive tape for proper mounting on aluminum or vinyl. Spacers, covers, switch only, magnet only and additional adhesive tape are also available separately.
General Information

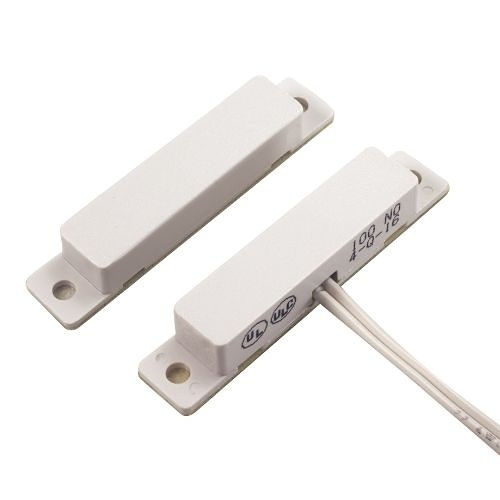

Name : GRI 101-12-WHT Open Loop Type B-Reed Form Mini, White , George Risk Industries
Category : Magnetic Contacts
UPC Code : 697625003365
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : GI-10112WHT
Brand Name : GRI
Manufacturer : George Risk Industries
Manufacturer Part Number : GI-10112W
Product Model : 101-12-WHT
Product Name : 101-12-WHT Magnetic Contact
Product Type : Magnetic Contact
Technical Information
Contact Configuration : N.C.
Contact Form : Form B
Contact Resistance : 140000 Micro Ohm
Contact Resistance (Ohm) : 0.14
Mounting Type : Surface Mount
Standard Gap : 1"
Standard Gap (mm) : 25.4
Termination Style : Screw Terminal
Physical Characteristics
Application/Usage : Commercial, Residential
Color : White
Product Information
Contact Type : Open Loop
Installation Type : Hybrid
Warranty
Limited Warranty : Lifetime
Miscellaneous
Additional Information : <ul> <li>Standard 12" leads or screw terminals</li> <li>Private labeling available on request</li> </ul>
Certifications & Standards : <ul> <li>UL</li> <li>ULC</li> </ul> <p></p>
Compatibility : <br /> <p></p>
Features : End of Line (EOL) Resistor
Package Contents : <ul> <li>101-12-WHT Magnetic Contact</li> <li>Covers</li> <li>Mounting Hardware</li> </ul>
