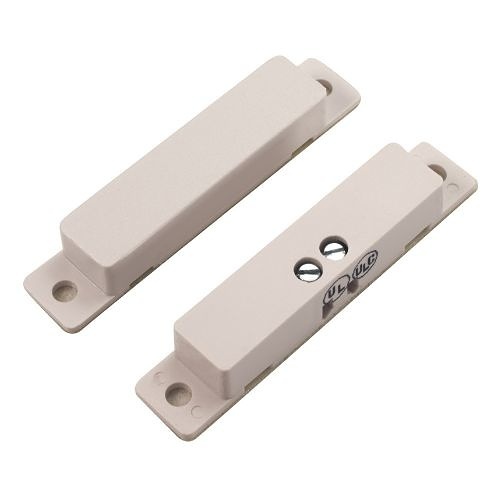

GRI 100-T-AL 100 Series Standard Gap Miniature Surface Mount Switch Set, Closed, N/O, A, Almond
100-T-AL
|GI-100TAL
GRI 100-T-AL 100 Series Standard Gap Miniature Surface Mount Switch Set, Closed, N/O, A, Almond
100-T-AL | GI-100TAL
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The GRI 100 style switch set is our most popular miniature surface mount. Available in both flanged: 100-12 and without flanges: 110-12, this low profile series is perfect for residential and commercial use where a larger configuration is not appropriate. Available in regular and wide gap, the set incorporates into most decor requirements without being noticeable.
The 100 Series come with mounting screws. Both the 100 and 110 are furnished with adhesive tape for proper mounting on aluminum or vinyl. Spacers, covers, switch only, magnet only and additional adhesive tape are also available separately.
Main Features
- Miniature Profile Makes This Series Ideal For Residential and Light Co mmercial Applications
- Surface Mount Magnetic Contact
- Screw Down Flange or Self Stick
- 12” #22AWG Leads or Screw Terminals
- Longer Leads, Zip Cord or Jacketed Cable Upon Request
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Covers and Mounting Hardware Included
- Built-in E.O.L. Resistors and Diodes Upon Request
- Supervisory Loops Upon Request
General Information
Specifications
ADI Part Number GI-100TAL Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 100-T-AL Product Model 100-T-AL Product Name 100-T-AL Magnetic Contact Product Series 100 Product Type Magnetic Contact
Application/Usage Commercial, Residential Connectivity Technology Wired Contact Form Form A Power Consumption 10W Standard Gap 1" Termination Style Screw Terminal
Color Almond
Input Current 400mA Input Voltage 160V DC Power Source DC
Contact Type N.O. Installation Type Residential Mount Type Surface Mount
Limited Warranty Lifetime Warranty
Additional Information - Standard 12" leads or screw terminals
- Private labeling available on request
Certifications & Standards UL, Ulc Compatibility
Country of Origin US Features End of Line (EOL) Resistor
