GRI 199-12-G 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Gray
GRI 199-12-G 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Gray
- Lifetime Warranty
- Colors:White, Brown, Grey or Black
- UL and ULC Approved
- Lifetime Warranty
- Colors:White, Brown, Grey or Black
- UL and ULC Approved
Sign In for Dealer Pricing
Become an ADI Customer- Lifetime Warranty
- Colors:White, Brown, Grey or Black
- UL and ULC Approved
GRI 199-12-G 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Gray
199-12-G | GI-19912G
Please sign in to view pricing and availability and to add to cart.
Recommended
Accessories
Product Overview

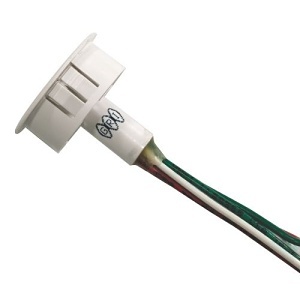

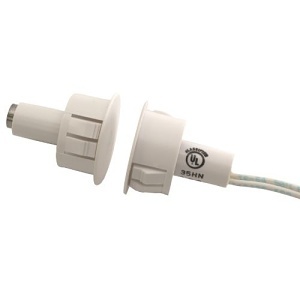

The GRI 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set.
The innovative GRI 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.
Main Features
- Lifetime Warranty
- Colors:White, Brown, Grey or Black
- UL and ULC Approved
- 180-12 & 184-12 UL 10C Fire Rated
- Available in Closed Loop, Open Loop and SPDT
- 3/4" and 1" Diameter Mounting
- Standard 12" Leads or Terminals
- Self-Locking
- Solid, One Piece Design
- 7/8" Diameter also Available - Call Factory
General Information
Specifications
-
ADI Part Number GI-19912G Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 199-12-G Product Model 199-12-G Product Name 199-12-G Magnetic Contact Product Type Magnetic Contact
-
Connectivity Technology Wired Contact Form Form C Standard Gap 0.5"
-
Application/Usage Commercial, Industrial, Residential Color Gray Material Steel
-
Power Source DC
-
Contact Type DPDT Diameter 1" Installation Type Commercial Length 12" Mount Type Recessed Mount
-
Limited Warranty Lifetime
-
Additional Information - Switches or Magnets are Available Separately
- Wide Gap 1"+ Gap on Steel
- Supervisory Loops Available
Country of Origin US Features End of Line (EOL) Resistor, Self-lock Mounting
