GRI 20RS-TXWG-W 3/8" Short Press Fit Recessed Switch Set, 1" Extra Wide Gap, 10W, 200VDC, 0.50A, Closed, N/O, A, White
GRI 20RS-TXWG-W 3/8" Short Press Fit Recessed Switch Set, 1" Extra Wide Gap, 10W, 200VDC, 0.50A, Closed, N/O, A, White
- Standard Lead Length 12 or Terminal Block
- Longer Leads, Zip Cord or Jacketed Cable on Request
- Ideal for Thin Framed Doors, Windows
- Standard Lead Length 12 or Terminal Block
- Longer Leads, Zip Cord or Jacketed Cable on Request
- Ideal for Thin Framed Doors, Windows
Sign In for Dealer Pricing
Become an ADI Customer- Standard Lead Length 12 or Terminal Block
- Longer Leads, Zip Cord or Jacketed Cable on Request
- Ideal for Thin Framed Doors, Windows
GRI 20RS-TXWG-W 3/8" Short Press Fit Recessed Switch Set, 1" Extra Wide Gap, 10W, 200VDC, 0.50A, Closed, N/O, A, White
20RS-TXWG | GI-20RSTXWGW
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview

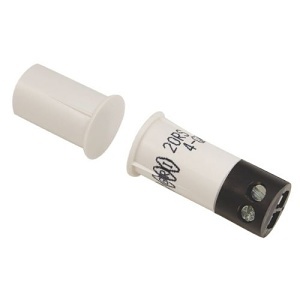

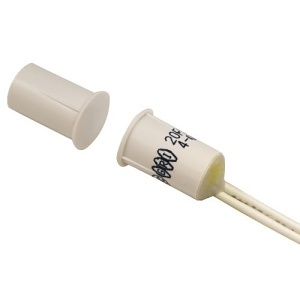

The G.R.I. recessed "shortie" switch set is designed for applications where a 3/8" press to fit set is needed but space limitations will not allow for a full length set to be installed. With the 5/8" 20RS-12, or the .930" 20RS-T, the installer is able to protect openings that otherwise would have to be secured with more visible surface mount configurations. Available in regular and extra wide gaps, the 20RS series provides an easy answer to the difficult, high dollar window problems every installer encounters.
INSTALLATION APPLICATIONS:
The G.R.I. recessed “shortie” switch set is designed for applications where a 3/8” press to fit set is needed, but space limitations will not allow for a full length set to be installed. Just 5/8” long, the installer is able to protect openings with the 20RS-12 that otherwise would have to be secured with more visible surface mount configurations. Available in regular and extra wide gaps, the 20RS series provides an easy answer to the difficult, high dollar window problems every installer encounters.
Main Features
- Standard Lead Length 12 or Terminal Block
- Longer Leads, Zip Cord or Jacketed Cable on Request
- Ideal for Thin Framed Doors, Windows
- Built-in E.O.L. resistors and diodes upon request
- Switches or magnets available separately
General Information
Specifications
-
ADI Part Number GI-20RSTXWGW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 20RS-TXWG-W Product Model 20RS-TXWG Product Name 20RS-TXWG Magnetic Contact Product Series 20RS Product Type Magnetic Contact
-
Standard Gap 1"
-
Color White
-
Power Source DC
-
Contact Type Closed Loop, N.O. Installation Type Residential Mount Type Recessed Mount
-
Limited Warranty Lifetime
-
Additional Information - Plated contacts resist sticking or freezing
- Ideal for thin framed doors and windows
- Recessed 0.375" stubby
- Hermetically Sealed
- Extra wide gap
- Closed loop
Country of Origin US
