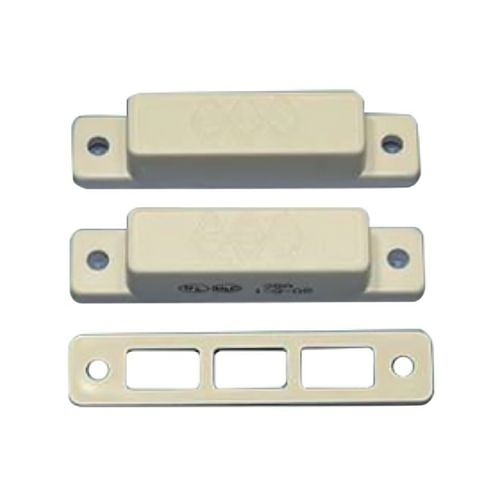

GRI 28AWG-W Surface Mount Magnetic Reed Switch Set, Closed Loop, Wide Gap up to 1-1/2", Concealed Terminals, White
28AWG-W|GI-28AWGW
Color: White
Standard Gap: 1.5"
GRI 28AWG-W Surface Mount Magnetic Reed Switch Set, Closed Loop, Wide Gap up to 1-1/2", Concealed Terminals, White
28AWG-W|GI-28AWGW
Color: White
Standard Gap: 1.5"
Key Features
What's Included
- This Versatile Series Sets The Industry Standard For Co mmercial and Light Industrial Applications
- Surface Mount Magnetic Contacts
- 24" #22 AWG 2 Conductor Jacketed Lead on 29PA
Key Features
What's Included
- This Versatile Series Sets The Industry Standard For Co mmercial and Light Industrial Applications
- Surface Mount Magnetic Contacts
- 24" #22 AWG 2 Conductor Jacketed Lead on 29PA
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- This Versatile Series Sets The Industry Standard For Co mmercial and Light Industrial Applications
- Surface Mount Magnetic Contacts
- 24" #22 AWG 2 Conductor Jacketed Lead on 29PA
George Risk Industries
GRI 28AWG-W Surface Mount Magnetic Reed Switch Set, Closed Loop, Wide Gap up to 1-1/2", Concealed Terminals, White
28AWG-W | GI-28AWGW
Please sign in to view pricing and availability and to add to cart.
Accessories
Overview
Specifications
Documents
Product Overview
This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
Main Features
- This Versatile Series Sets The Industry Standard For Co mmercial and Light Industrial Applications
- Surface Mount Magnetic Contacts
- 24" #22 AWG 2 Conductor Jacketed Lead on 29PA
- Longer Leads on 29PA Upon Request
- Covers, Spacers and Mounting Hardware Included
- Built-in E.O.L. Resistors and Diodes Upon Request
- Supervisory Loops and Dummy Terminals Upon Request
- Switches and Magnets Available Separately
- Colors: White, Brown, Gray
- Private Labeling Upon Request
General Information
Name: GRI 28AWG-W Surface Mount Magnetic Reed Switch Set, Closed Loop, Wide Gap up to 1-1/2", Concealed Terminals, White
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625006236
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number GI-28AWGW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 28AWG-W Product Model 28AWG-W Product Name 28AWG-W Magnetic Contact Product Series 29 Product Type Magnetic Contact
-
Connectivity Technology Wired Contact Form Form A Standard Gap 1.5" Termination Style Screw Terminal
-
Application/Usage Commercial, Industrial Color White Material Steel
-
Power Source DC
-
Contact Type Closed Loop, N.O. Installation Type Commercial Mount Type Surface Mount
-
Limited Warranty Lifetime
-
Additional Information - Screw Down Flanges
- Side Screw Terminals on 29 Series
Country of Origin US Features End of Line (EOL) Resistor Package Contents - 28AWG-W Magnetic Contact
- Covers
- Spacers
- Mounting Hardware
