Product Overview
The stylish windstorm resistant, surface mounted solution.

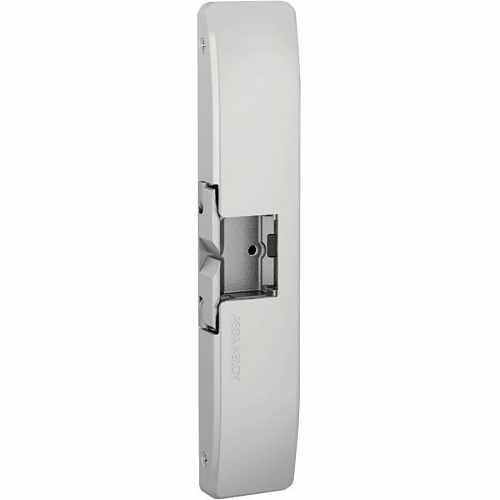

The 9600 Series Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.
The 9600 is a surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
General Information
Name : HES 9600-613-LBSM Surface Mounted Electric Strike Windstorm Resistant, Latchbolt Strike Monitor, 12-24VDC, Bronze Toned , HES by ASSA ABLOY
Category : Electric Strikes
UPC Code : 740090010304
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : HE-96613LBSM
Brand Name : HES
Manufacturer : ASSA ABLOY
Manufacturer Part Number : 9600613LBSM
Product Name : 9600 Surface Mounted Electric Strike
Product Series : 9600
Product Type : Electric Strike
Technical Information
Compatible Door Frame Type : Metal, Wood
Compatible Door Lock Type : Rim Exit
Door Handling : Non Handed
Duty Cycle : 1000000
Electric Strike Assembly : Body Only
Holding Strength : 2000 lb
Holding Strength (g) : 907184.74
Security Configuration : Fail Safe, Fail Secure
Physical Characteristics
Application/Usage : Outdoor, Rim Exit Device
Product Material : Stainless Steel
Strike Height : 9"
Strike Height (mm) : 228.6
Strike Thickness : 0.75"
Strike Thickness (mm) : 19
Strike Width : 1.75"
Strike Width (mm) : 44.5
Power Description
Input Current : 250 mA, 450 mA
Input Current (A) : 0.25, 0.45
Input Voltage : 12V DC, 24V DC
Input Voltage (V DC) : 12, 24
Power Source : DC Supply
Warranty
Limited Warranty : 5 year
Miscellaneous
Compatibility : <p>3/4" Pullman Rim Exit Devices</p>
Environmental Certification : ROHS
Environmentally Friendly : Yes
Features : Burglary Resistant, Dual Voltage, Latchbolt Strike Monitor (LBSM), Static Strength, Surface Mount, Tamper Resistant, Windstorm Resistant
