Product Overview

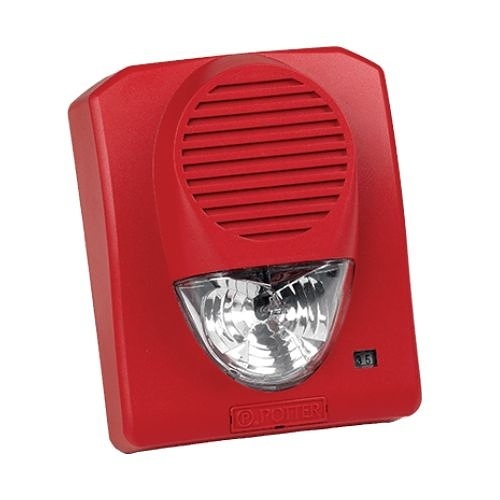

The SH-120 Series Horn Strobe is designed to provide audible and/or visual signals for fire and burglar alarm protection systems and notification signals for the purpose of life safety and protection.
The SH-120 are operable with a 120 VAC system between 96 VAC and 132 VAC. They can be interfaced with pull stations, flow switches, and sprinkler systems for residential, commercial and industrial applications.
The SH Series combines a selective three horn tone and provides a continuous tone or temporal pattern (code 3) when constant voltage is applied.
This series is available with a red or white housing and a clear lens.
General Information
Name : Potter 4710030 120V AC Horn Strobe with Striking Body, Red , Potter Electric Signal, LLC
Category : Horn Strobes
UPC Code : 785192017813
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : PL-SH120R
Brand Name : Potter Electric Signal, LLC
Connectivity Technology : Wired
Manufacturer : Potter Electric Signal, LLC
Manufacturer Part Number : 4710030
Product Functions : Alarm
Product Line : Select-A-Strobe/Horn
Product Model : SH-120R
Product Name : SH-120 Series 120VAC Weatherproof Selectable Candela Wall Mount Horn Strobe
Product Series : SH-120
Product Type : Horn, Strobe
Technical Information
Alarm Type : Audible, Visual
Physical Characteristics
Application/Usage : Commercial, Control Panel, Fire Alarm, Indoor, Industrial, Outdoor, Residential, Signaling System
Color : Red
Depth : 2.3"
Depth (mm) : 59
Durability : Weather Proof
Form Factor : Box, Wall Mount
Height : 6.1"
Height (mm) : 154.4
Lens Color : Clear
Product Color : Red
Width : 5"
Width (mm) : 127
Power Description
Input Voltage : 132V AC
Input Voltage (V AC) : 132
Power Source : AC Supply
Miscellaneous
Package Contents : <ul> <li>SH-120 Series 120VAC Weatherproof Selectable Candela Wall Mount Horn Strobe</li> <li>BBX-5 weather proof backbox</li> </ul>
