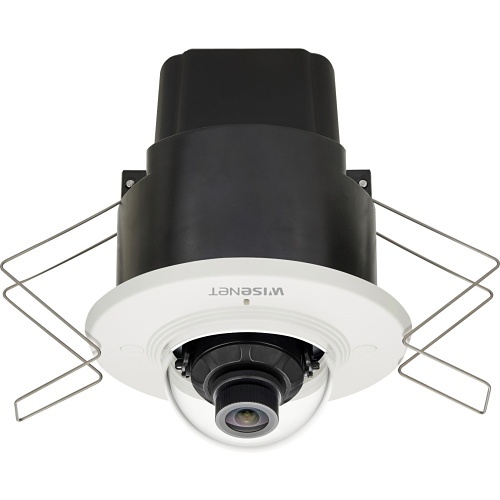

Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
XND-8020F|SQ-XND8020F
Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
XND-8020F|SQ-XND8020F
Key Features
- 5MP at 30 fps
- Triple codec H.265/H.264/MJPEG
- 3.7 mm fixed lens
Key Features
- 5MP at 30 fps
- Triple codec H.265/H.264/MJPEG
- 3.7 mm fixed lens
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 5MP at 30 fps
- Triple codec H.265/H.264/MJPEG
- 3.7 mm fixed lens
Hanwha Vision
Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
XND-8020F | SQ-XND8020F
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Wisenet X powered by Wisenet 5 network flush mount dome camera, 5MP at 30fps, 3.7mm fixed lens (97.5°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification and business analytics, built-in Mic, magnetic cover, electronic D/N, SD card, hallway view, HLC, defog detection, DIS, PoE only.
Main Features
- 5MP at 30 fps
- Triple codec H.265/H.264/MJPEG
- 3.7 mm fixed lens
- Wide dynamic range 120dB
- On-board analytics (business/audio and video)
- Digital image stabilization
- Magnetic cover and a built-in mic
- Built-in retail business intelligence analytics
- USB for easy installation
General Information
Name: Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 8801089102935
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-XND8020F Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XND-8020F Product Model XND-8020F Product Name 5MP Indoor Flush Mount Compact Dome Camera Product Series X Product Type Dome Camera Weight 0.6lb
-
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View H: 97.5°, V: 71.9°, D: 126.2° Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 3.7mm Video Formats H.264, H.265, MJPEG, MPEG-4
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
NDAA Compliant Yes
-
Maximum Video Resolution 2560 x 1920
-
Maximum Operating Temperature 131°F Minimum Operating Temperature 14°F Operating Humidity 90% RH
-
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.16 lux Shortest Shutter Speed 2 Second
-
Network (RJ-45) Yes
-
Focal Length 3.7 mm Lens Included Yes Maximum Focal Length 3.7 mm
-
Remote Management Yes
-
Color Ivory Form Factor Dome Height 5.1"
-
Input Voltage 12V DC
-
Diameter 3.9" Mount Type Flush Mount
-
Recording Formats HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin KR Features 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Highlight Compensation (HLC), Privacy Masking, SD Card Local Storage, Wide Dynamic Range Indoor/Outdoor Indoor
